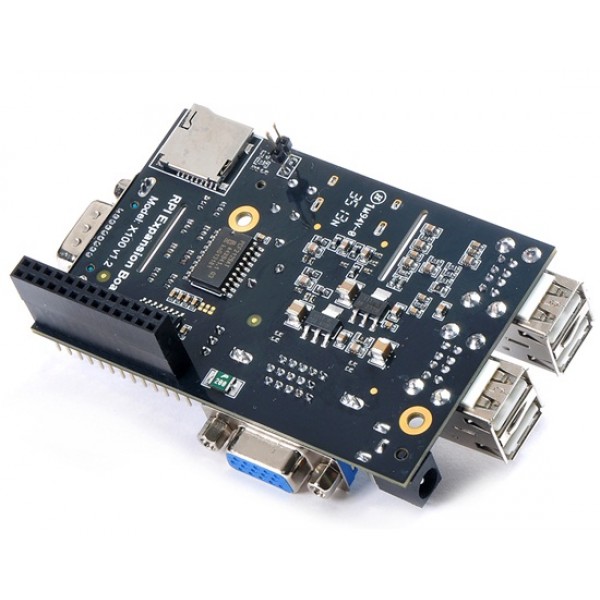

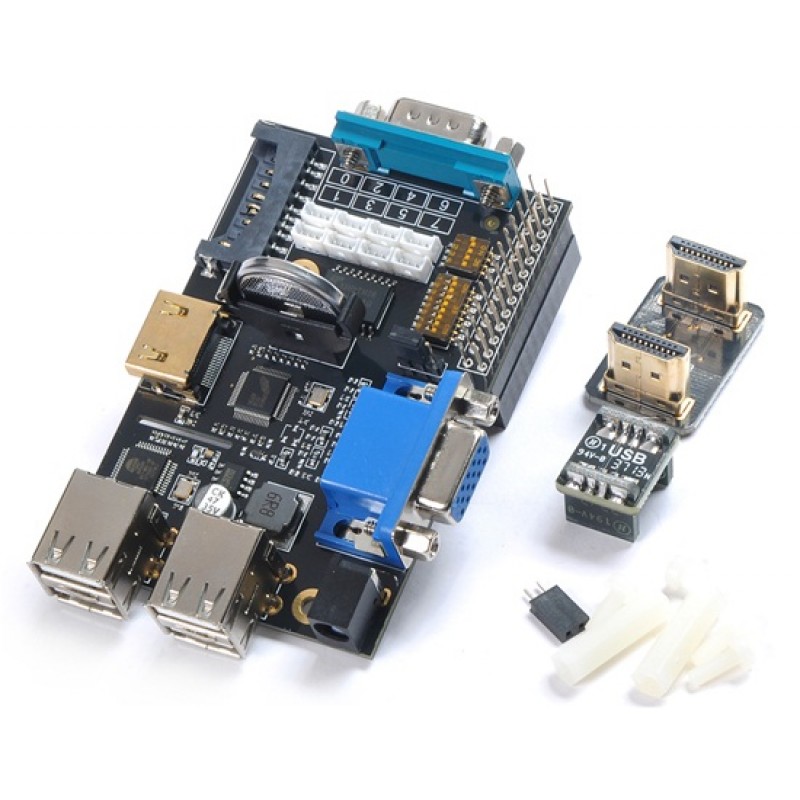

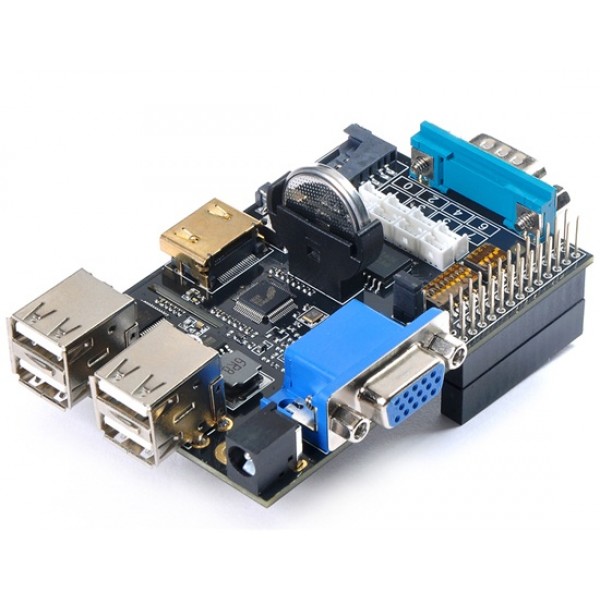

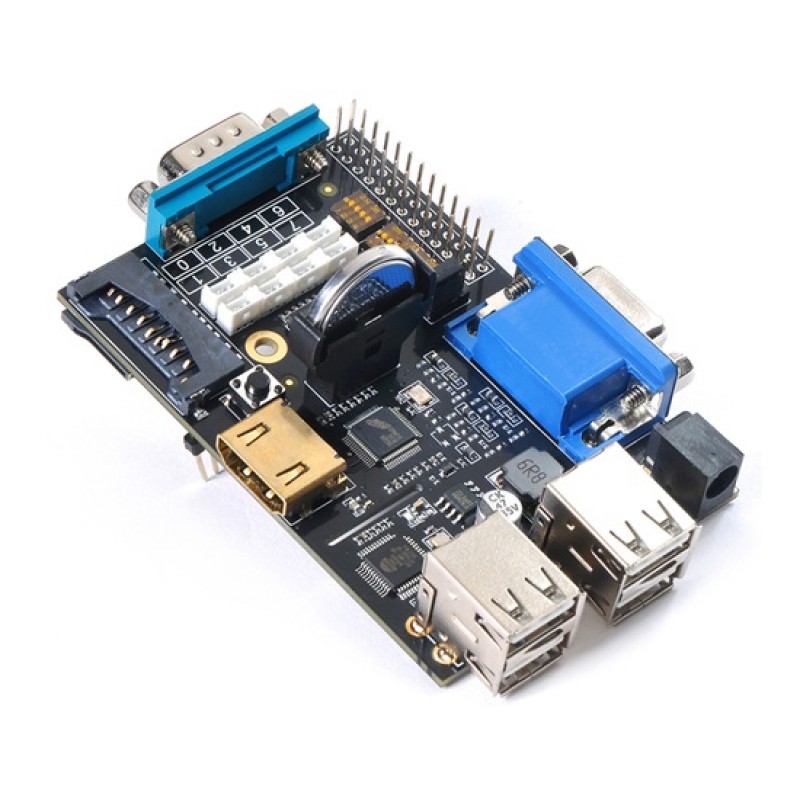

X100 Expansion Board Made for Raspberry Pi
- Ex Tax: $43.11
- Product Code: CX0255X
- Availability: In Stock
FeaturesExactly same size as Raspberry Pi (85 x 5mm)Directly installed into the GPIO header pins with no wiring or soldering-23V input to 5V, 3A high-efficiency step-down DC/DC converter to supply you..
$43.11
| Features | |
| Exactly same size as Raspberry Pi (85 x 5mm) Directly installed into the GPIO header pins with no wiring or soldering -23V input to 5V, 3A high-efficiency step-down DC/DC converter to supply your RPI Supports HDMI to VGA (NOT powered by the RPIs HDMI port) Supports self-powered USB hub (Total 4 ports available) Supports self-powered SD and Micro-SD card reader (the MAX capacitance of the memory card maximum is decided Raspberry pi board and the system) RTC based on NXP PCF2127AT / PCF2129AT with CR2032 backup battery RS232 Serial Port Equipped with a reset switch to conveniently enable RPi reset facility Comes with two slots to make use of RPis FPC connector (S1 & S5) Allows to stack along with other expansion boards 8-channel darlington Driver chip allowing to control electronic circuits which require more current to drive them Has DIP switch to remove connection from RPis pin header so as to keep using other expansion board with no effect | |
| General Specs | |
| Module & Model | X100 |
| Material | PCBA |
| Input | -23V |
| Output | 5V 3A |
| Compatibility | Raspberry Pi Rev 2 Model B |
Package Details
Weight: g Size: cm
