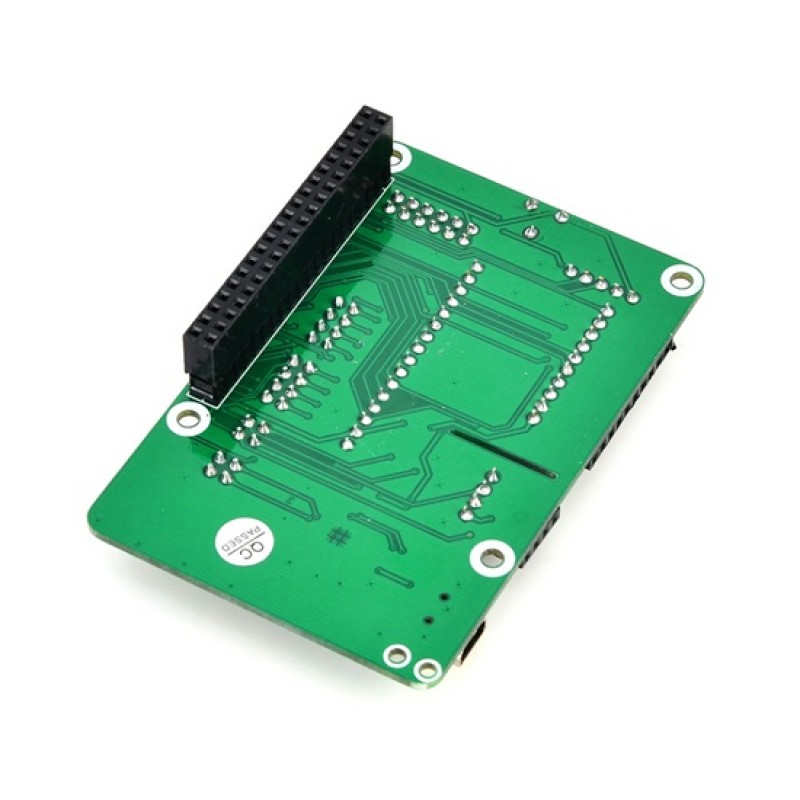

Waveshare DVK512 GPIO Expansion Board for Raspberry Pi B+ 3 (Gre
- Ex Tax: $26.99
- Product Code: CX0256G
- Availability: In Stock
FeaturesCore Interface Description:RPi connector: Easy access RPi;UART interface: Easy access to all kinds of use UART interface modules, such as RS232, RS485, USB TO UART modules;8I / Os interface: E..
$26.99
| Features | |

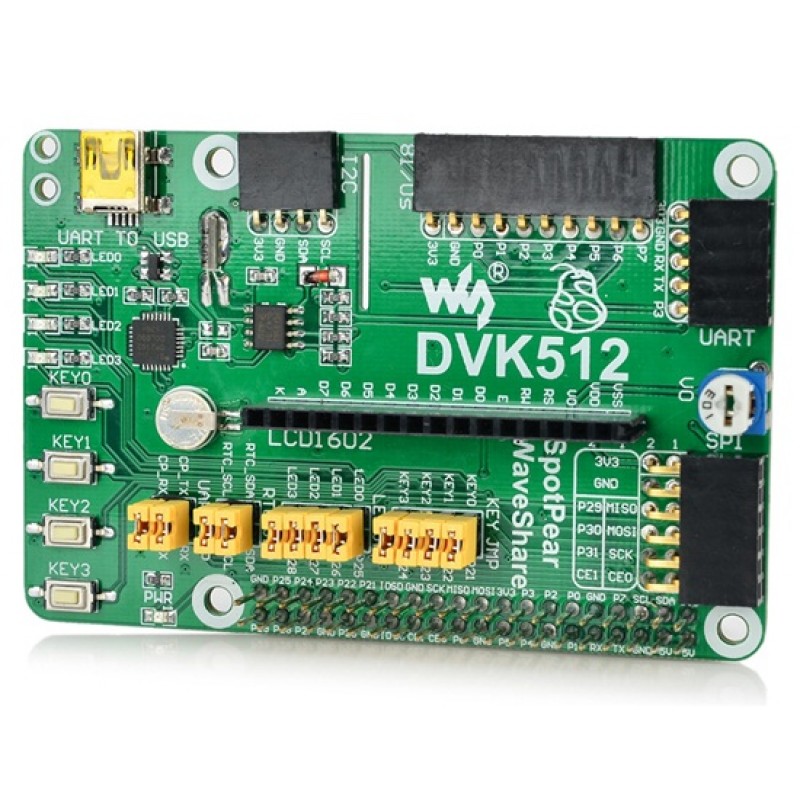

| Core Interface Description: RPi connector: Easy access RPi; UART interface: Easy access to all kinds of use UART interface modules, such as RS232, RS485, USB TO UART modules; 8I / Os interface: Easy access to all kinds of uses I / O control module, such as eight key module, Logic Level Converter and Mix Board and so on; SPI Interface: Easy access to all kinds of use SPI interface modules, such as AT45DBXX DataFlash Board, L3G4200D Board and so on; I2C Interface: Easy access to all kinds of use I2C interface modules, such as PCF8574 IO Expansion Board, PCF853 RTC Board, LSM303DLHC Board and so on; Character LCD Interface: Convenient access LCD102. Other interfaces Introduction: USB TO UART interface: After board CP2102 USB TO UART chip conversion into UART. Device Profile Power LED User LED: Facilitate I / O output test or display program running. User Button: Facilitate I / O input test or control program running. Potentiometer: Contrast adjustment for LCD102 RTC real time clock battery powered PCF853: RTC real time clock chip 32.78K crystal: RTC real time clock oscillator CP2102: USB TO UART, to facilitate debugging . Device Profile CP2102 jumpers RTC Jumper User LED jumper User key jumpers | |
| General Specs | |
| Module & Model | Waveshare DVK512 |
| Material | PCB |
| Color | Green |
| Compatibility | Raspberry Pi B+ 3 |
Package Details
Weight: g Size: cm
