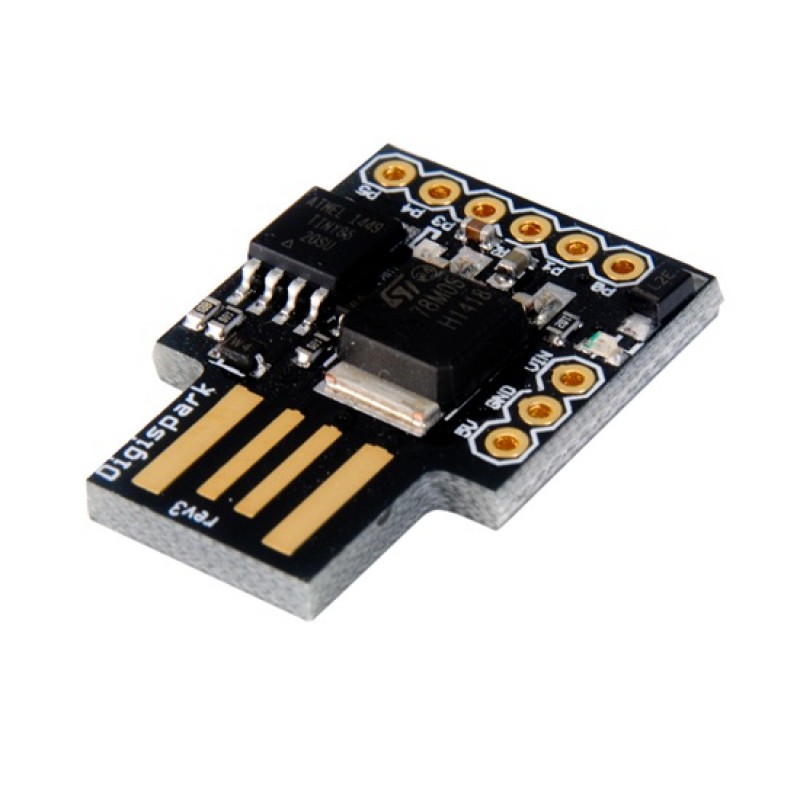

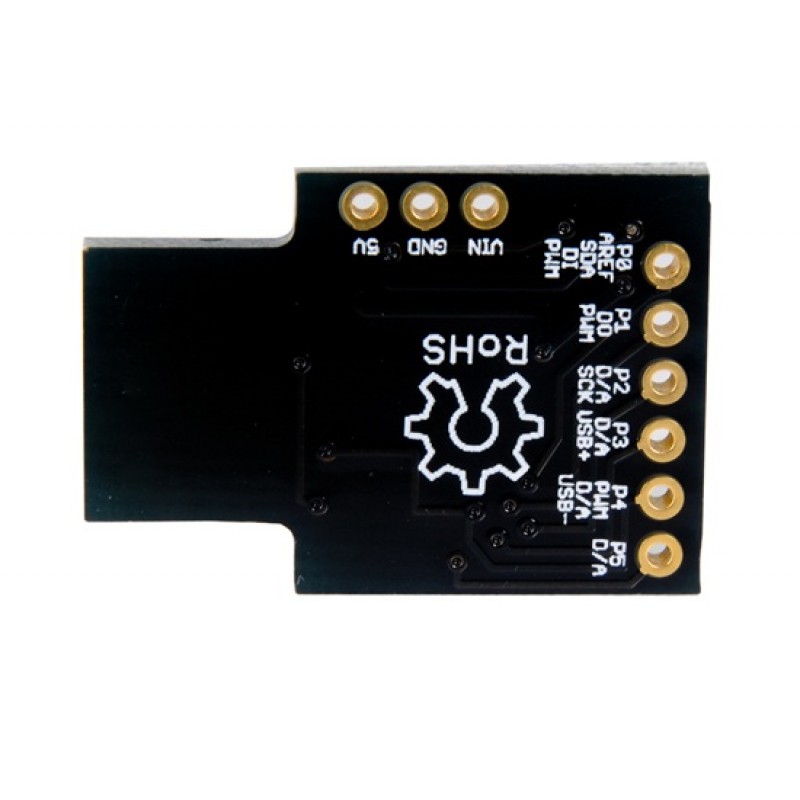

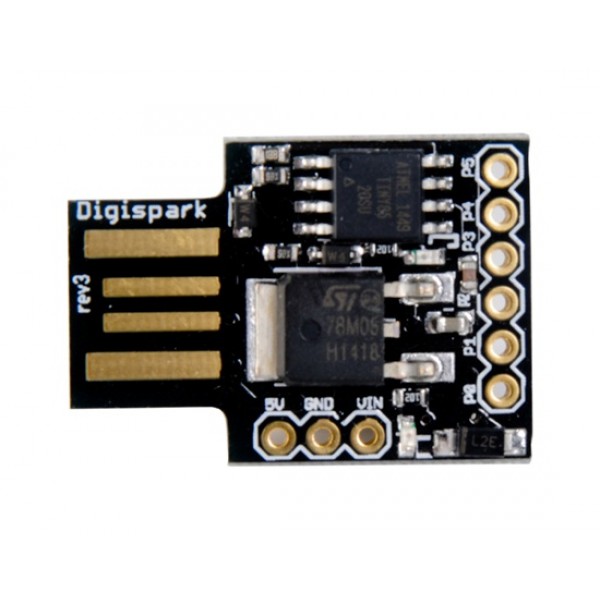

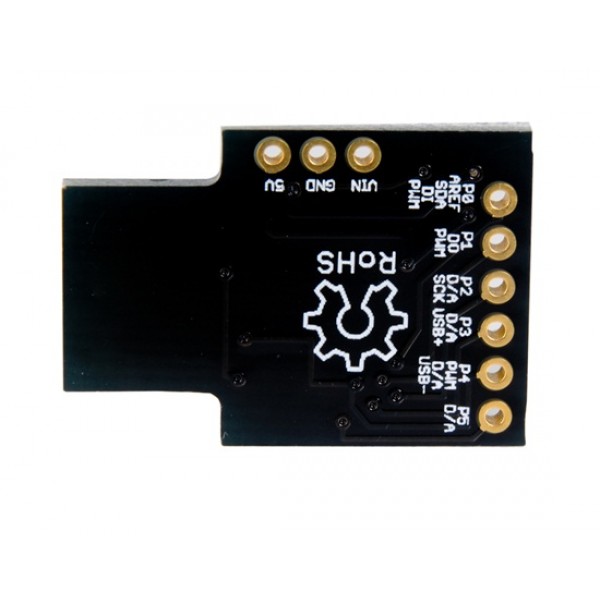

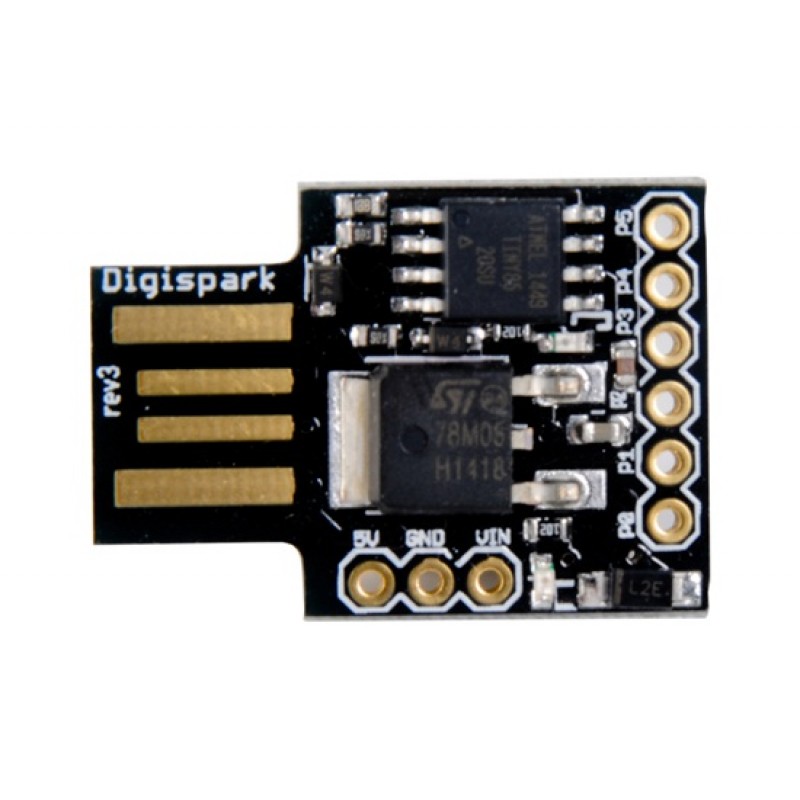

Universal USB Development Board for Arduino (Black)
- Ex Tax: $6.36
- Product Code: CX0353B
- Availability: In Stock
FeaturesSupports for the Arduino IDE 1.0+ (OSX/Win/Linux)Power via USB or External Source - 5v or 7-35v (automatic selection)On-board 500mA 5V regulatorBuilt-in USB (and serial debugging) I/O Pins (2 ..
$6.36
| Features | |
| Supports for the Arduino IDE 1.0+ (OSX/Win/Linux) Power via USB or External Source - 5v or 7-35v (automatic selection) On-board 500mA 5V regulator Built-in USB (and serial debugging) I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all even if you are programming via USB) 8k Flash Memory (about k after bootloader) I2C and SPI (vis USI) PWM on 3 pins (more possible with Software PWM) ADC on 4 pins Power LED and Test/Status LED (on Pin0) | |
| General Specs | |
| Material | FR4 |
| Quantity | 1-piece |
| Chipset | ATTINY85 |
| Hardware Platform | Arduino |
| Dimension | 2.7 x 2 x 0.5 cm |
| Size | 5 g |
Package Details
Weight: g Size: cm
