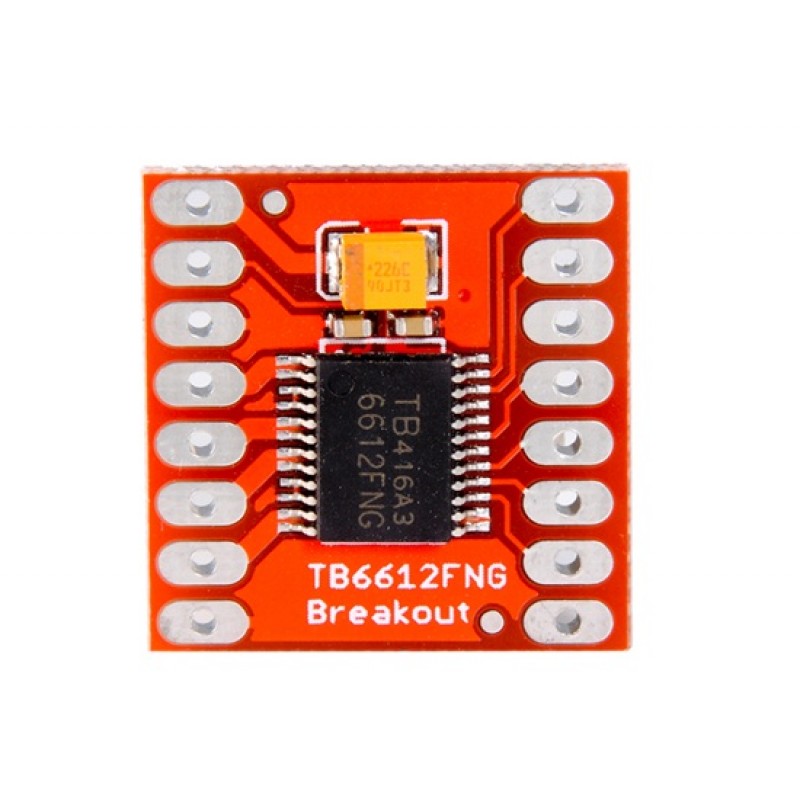

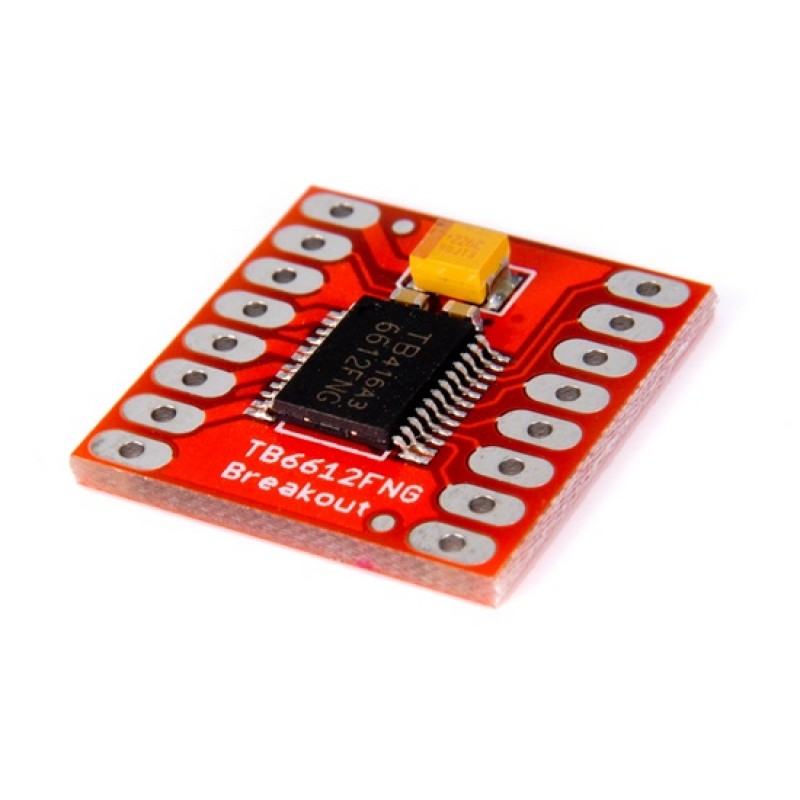

TB6612FNG 1A 2-CH Driving Board Module for Motor (Red)
- Ex Tax: $6.74
- Product Code: CX0348R
- Availability: In Stock
FeaturesPower supply voltage: VM=15V max, VCC=2.7-5.5VOutput current: Iout=1.2A(average) / 3.2A (peak)Standby control to save power CW/CCW/short brake/stop motor control modesBuilt-in thermal shutdown..
$6.74
| Features | |

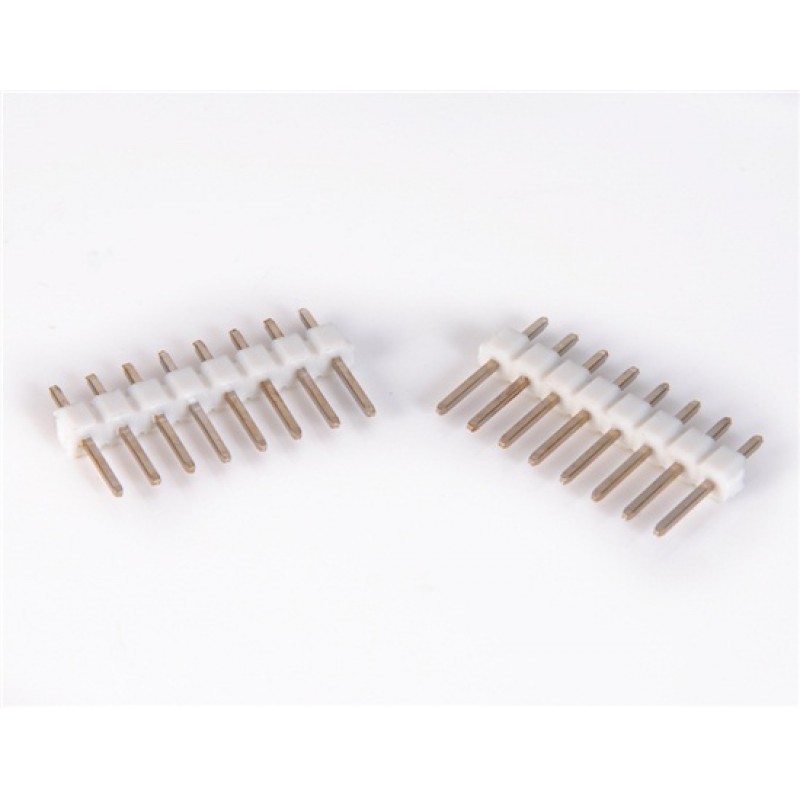

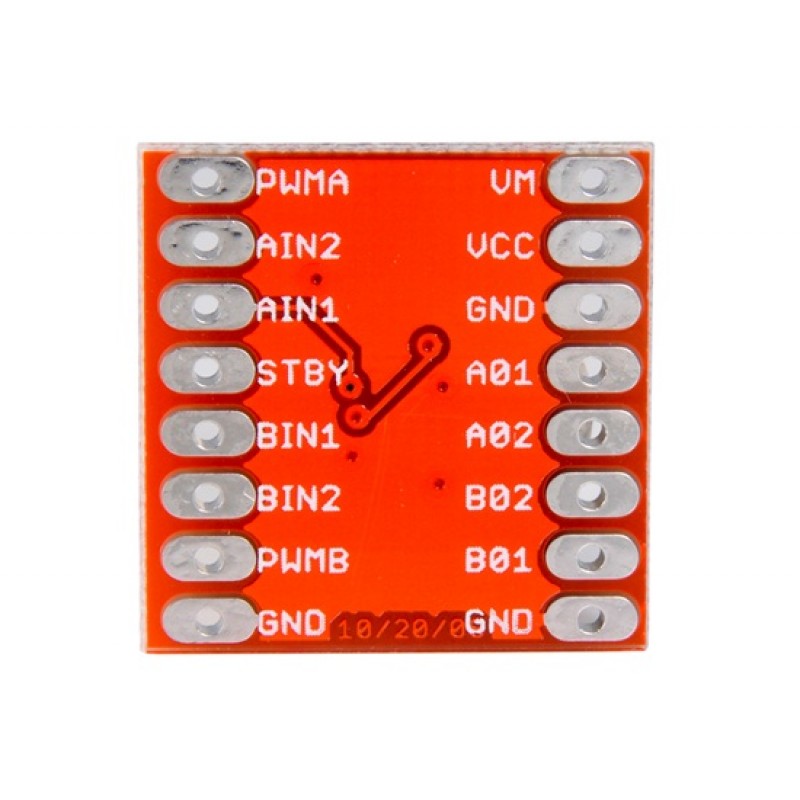

| Power supply voltage: VM=15V max, VCC=2.7-5.5V Output current: Iout=1.2A(average) / 3.2A (peak) Standby control to save power CW/CCW/short brake/stop motor control modes Built-in thermal shutdown circuit and low voltage detecting circuit All pins of the TB12FNG broken out to 0.1" spaced pins Filtering capacitors on both supply | |
| General Specs | |
| Module & Model | TB12FNG |
| Material | FR4 |
| Material | PCB |
| Dimension | 2.1 x 2.0 x 0.4 cm |
| Weight | 5 g |
Package Details
Weight: g Size: cm
