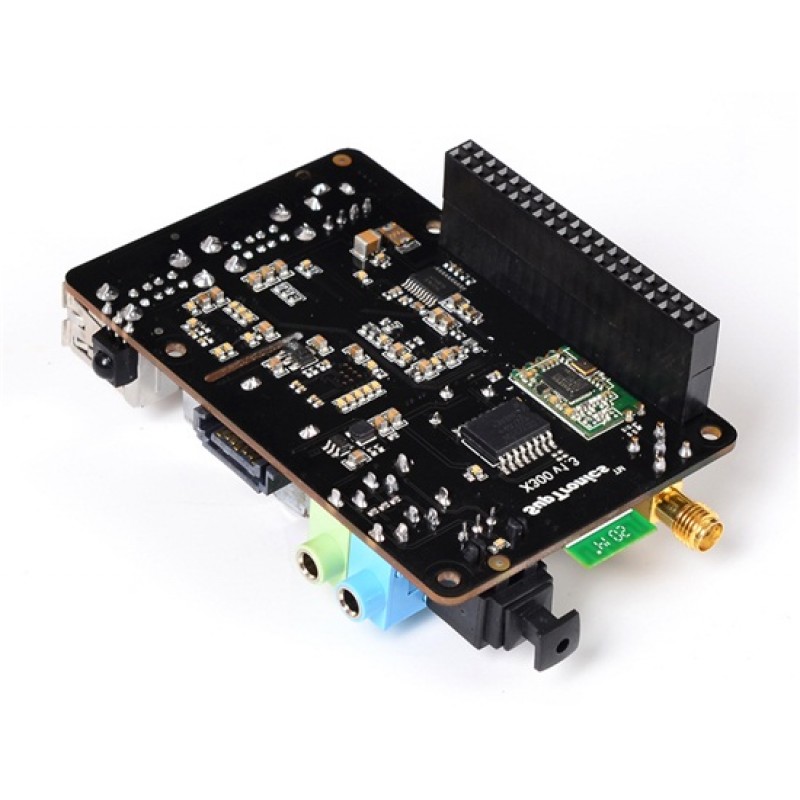

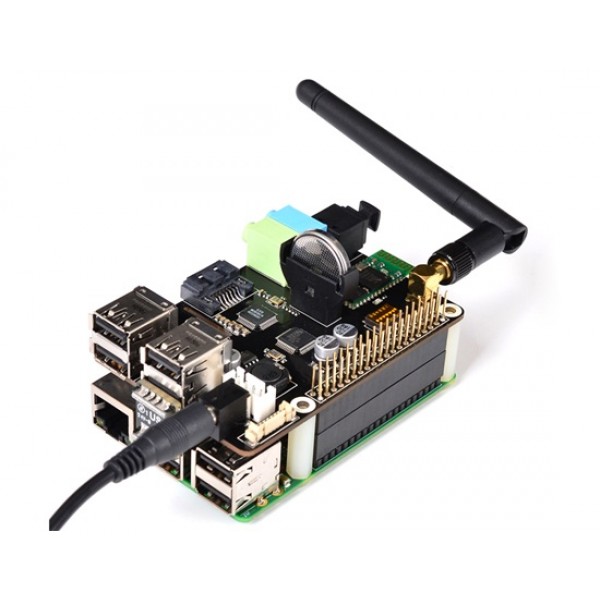

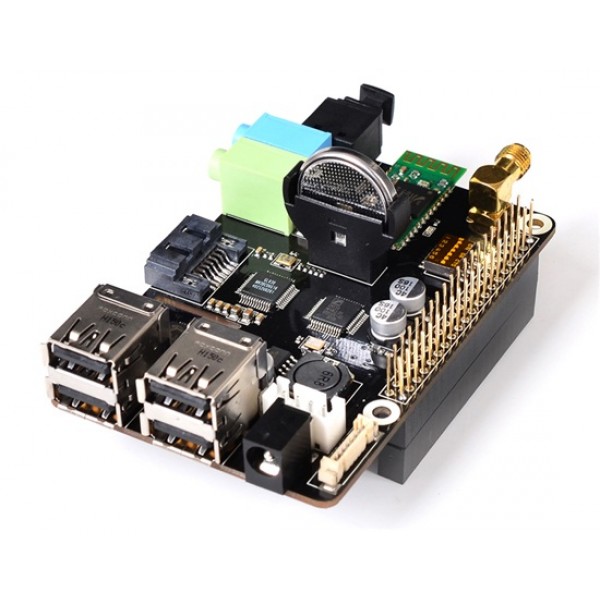

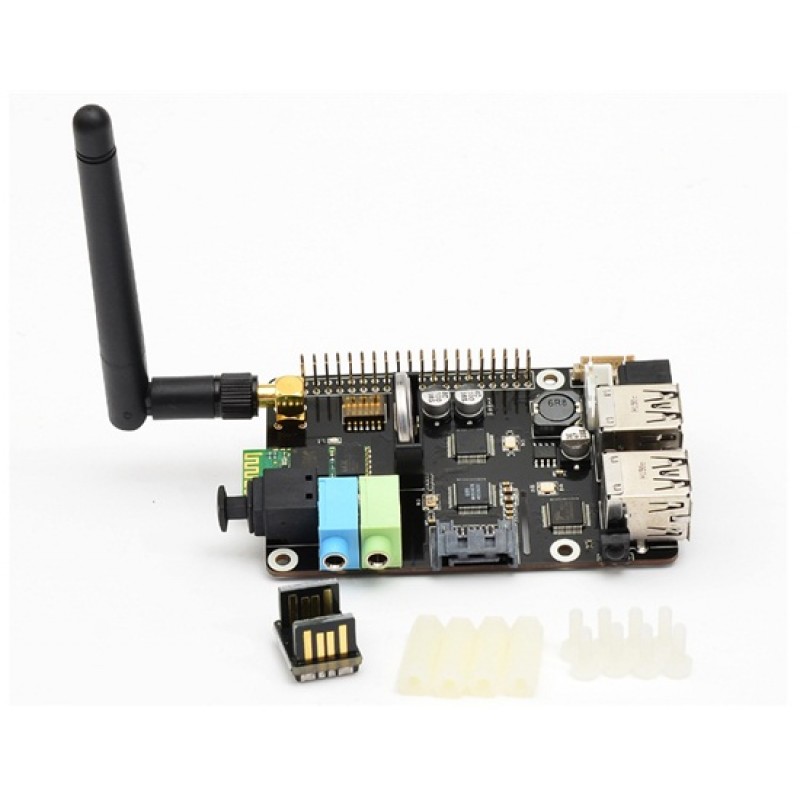

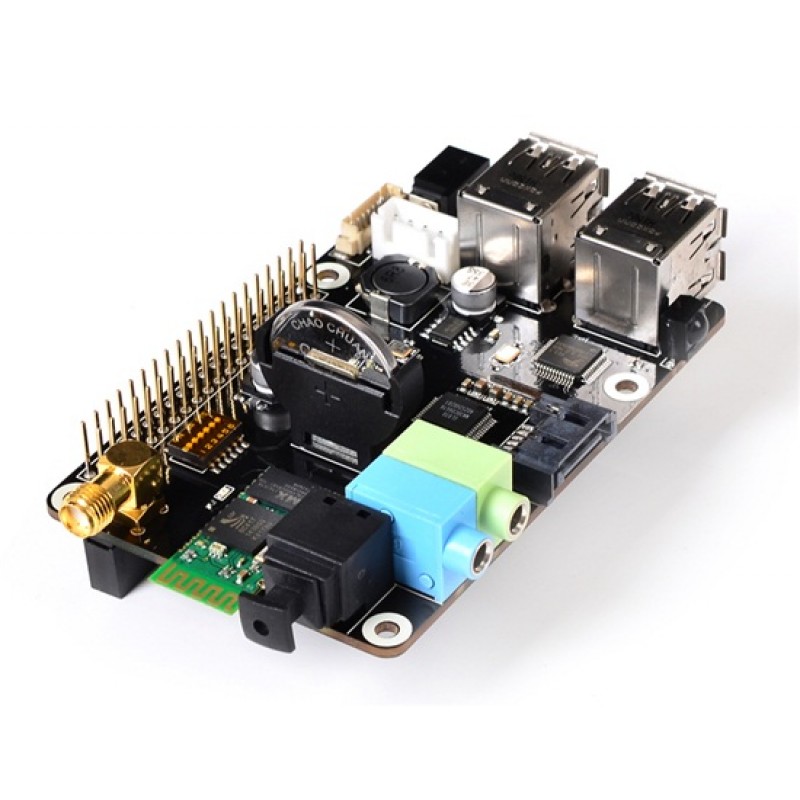

Supstronics X300 Expansion Board for Raspberry Pi Model B+ - a
- Ex Tax: $71.11
- Product Code: CX0264X
- Availability: In Stock
FeaturesExpansion board specially designed for Raspberry Pi Model B +Supplies the RPi with a regulated +5V through the GPIO header using a 2A poly-resettable (PTC) fuseCan be powered from a wide varie..
$71.11
| Features | |
| Expansion board specially designed for Raspberry Pi Model B + Supplies the RPi with a regulated +5V through the GPIO header using a 2A poly-resettable (PTC) fuse Can be powered from a wide variety of external sources such as batteries, 12V power adapters, solar battery sources, etc. Can convert complete HDMI into VGA video Supports 15MHz/1.5Gbps per channel (.75Gbps all channel) bandwidth for HDMI input Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC Additional +5V power outputs are also available at the pins of the JST servo ports connectors | |
| General Specs | |
| Module & Model | Supstronics X300 |
| Material | Electronic components |
| Battery | 3V CR2032 lithium battery |
| Compatibility | Raspberry Pi Model B+ |
Package Details
Weight: g Size: cm
