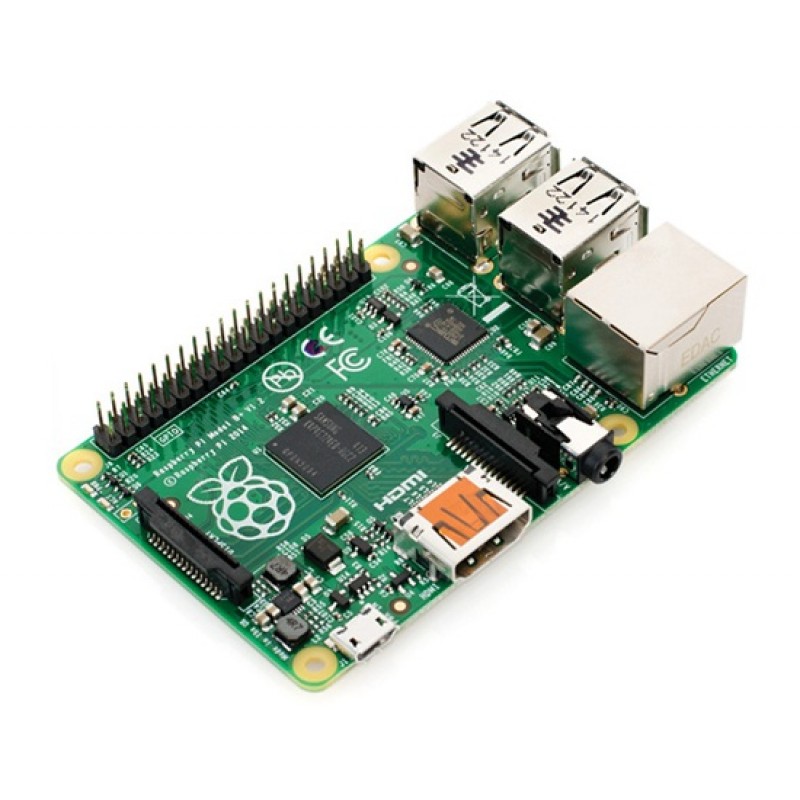

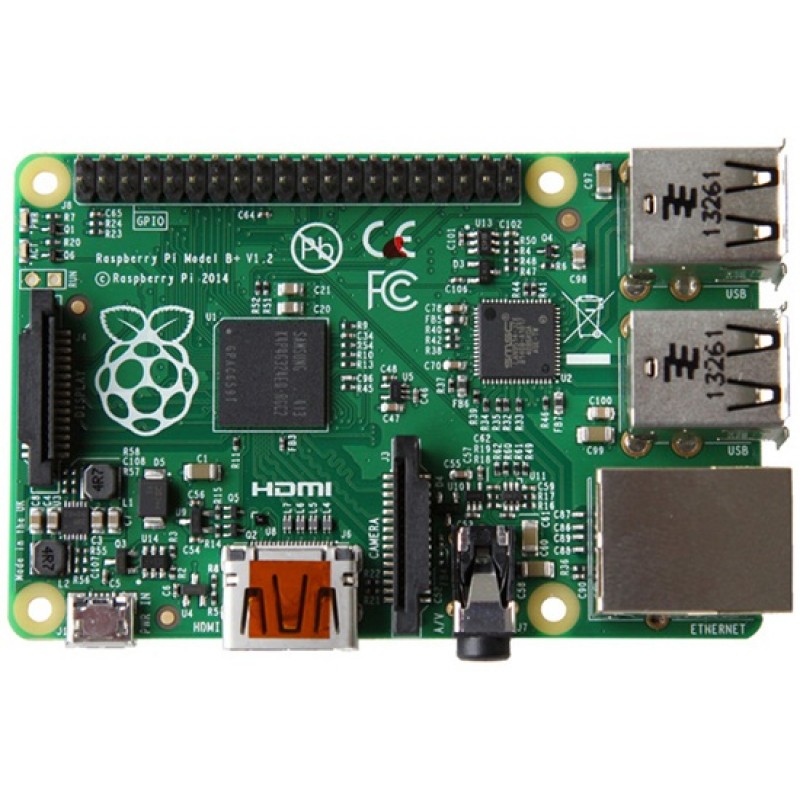

Raspberry Pi Model B+ 512MB (Green)
- Ex Tax: $74.99
- Product Code: CX0281X
- Availability: In Stock
FeaturesMore Energy Efficiency (Less Power Required)Improved Power Management: Manage More Devices from Your Pi!Bigger and Better projects via an Expanded GPIO Header (40 pins vs. 2)Increased connecti..
$74.99
| Features | |
| More Energy Efficiency (Less Power Required) Improved Power Management: Manage More Devices from Your Pi! Bigger and Better projects via an Expanded GPIO Header (40 pins vs. 2) Increased connectivity - 2 Extra USB ports (making a total of 4) and a new 4-pole connector replace the existing analogue and composite video port on the Model B. Smaller, compact design | |
| General Specs | |
| Dimensions | 85mm x 5mm |
| Chip | Broadcom BCM2835 SoC full HD multimedia applications processor |
| CPU | 700 MHz Low Power ARM117JZ-F Applications Processor |
| GPU | Dual Core VideoCore IV Multimedia Co-Processor |
| RAM | 512 MB SDRAM @ 400 MHz |
| Storage | MicroSD |
| USB 2.0 | 4 x USB Ports |
| Ethernet | 1x 10/100mb Ethernet RJ45 Jack |
| Video Connections | HDMI, Composite RCA (shared with audio jack) Supported Resolutions 40X350 to 1920X1200, including 1080p, PAL & NTSC standards |
| Audio | Multi-Channel HD Audio over HDMI, Stereo from 3.5 mm jack |
| Operating Systems | Raspbian, RaspBMC, Arch Linux, Risc OS, OpenELEC, Pidora |
| Power Draw / voltage | 00mA up to 1.8A @ 5V |
| GPIO 40 | Other Connectivity: 1x CSI-2 for Raspberry Pi camera modules 1x DSI for Raspberry Pi displays Power Source: 1x Micro-USB |
Package Details
Weight: g Size: cm
