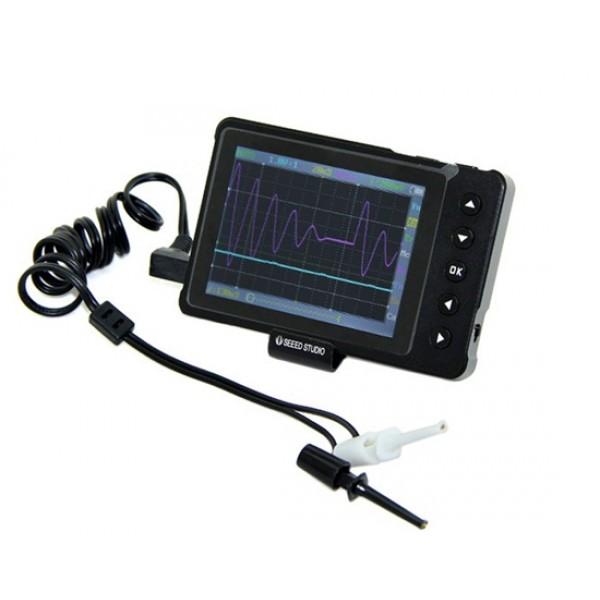

Professional Tool Digital Storage Oscilloscope DSO Nano v3
- Ex Tax: $124.99
- Product Code: CX0306X
- Availability: In Stock
FeaturesPortable and lightweightColor displayWaveform storage and playback triggering modes200Khz Analog BandwidthComplete measurement markers and signal characteristicsBuilt-in Signal GeneratorAccess..
$124.99
| Features | |

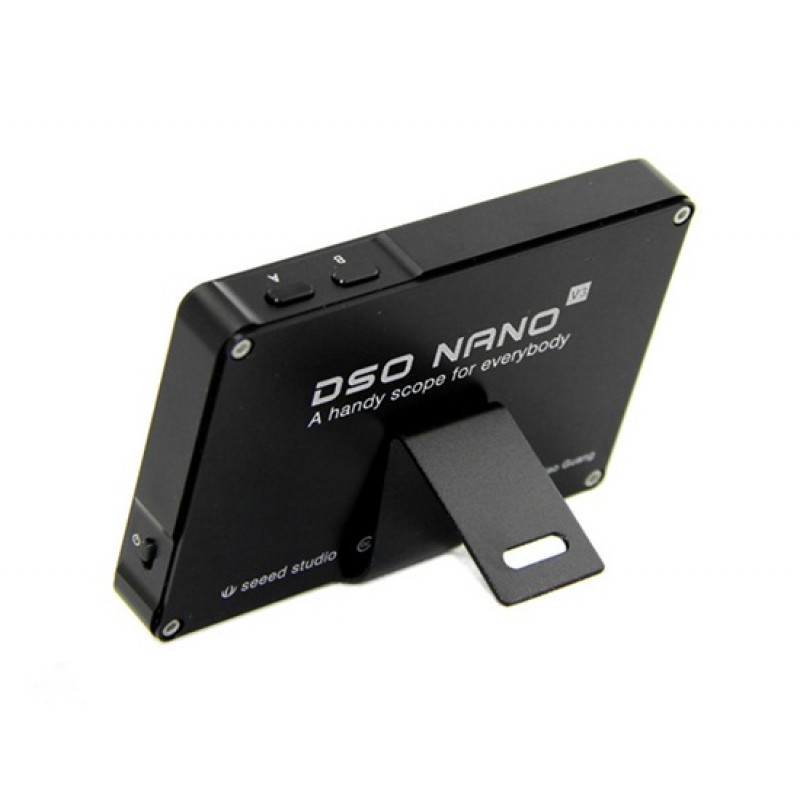

| Portable and lightweight Color display Waveform storage and playback triggering modes 200Khz Analog Bandwidth Complete measurement markers and signal characteristics Built-in Signal Generator Accessories available Open Source Updates in v3: V3 used a new firmware with user-friendly interface, easier to operate Upgraded firmware via virtual disk Added build-in 2Mbyte storage chip instead of micro SD card slot Black metal shell | |
| General Specs | |

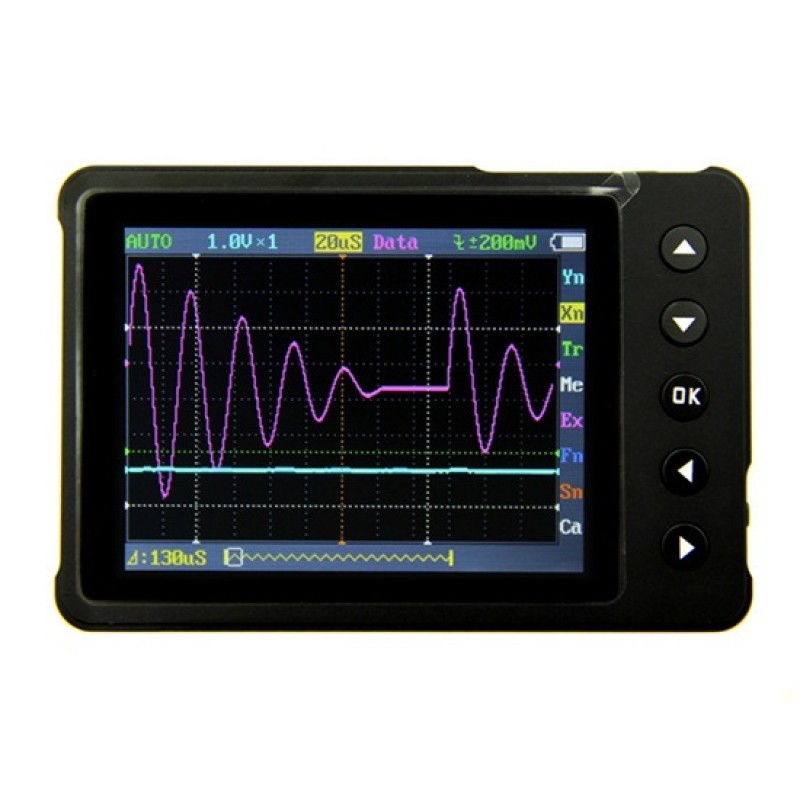

| Display | 2.8 color TFT LCD |
| Display Resolution | 320x240 Display Colors 5K |
| Analog Broadband | 0 ~ 200kHz |
| Max. Sampling Rate | 1Msps 12 bit |
| Sampling Storage Depth | 409 points |
| Transverse Sensitivity | 1uS/Div~10S/Div(1-2-5 stepping) |
| Vertical Sensitivity | 10mv/Div~10V/Div(x1 probe) 0.5V/Div~10V/Div(x10 probe) |
| Input Resistance | >500K |
| Max. Input Voltage | 80Vppx1 probe400Vpp(x10 probe) |
| Coupling Mode | DC |
| Triggering Mode | Auto,Normal,Single,None |
| Auto Measurement | Frequency, cycle, duty, Vpp, Vram, Vavg, DC voltage; Vertical Precise Measurement Cursor; Horizontal Precise Measurement Cursor; Rising/Falling Edge Trigger; Triggering Cursor; Triggering Sensitivity Cursor; Hold/Run |
| Inbuilt Test Signal | 10Hz~1MHz(1-2-5 stepping) |
| Waveform Storage | Build-in 2Mbyte |
| PC Connection Interface | Connection through USB |
| Recharging Method | Recharging through USB interface |
| Dimensions | 105mm x 53mm x 8mm |
Package Details
Weight: g Size: cm
