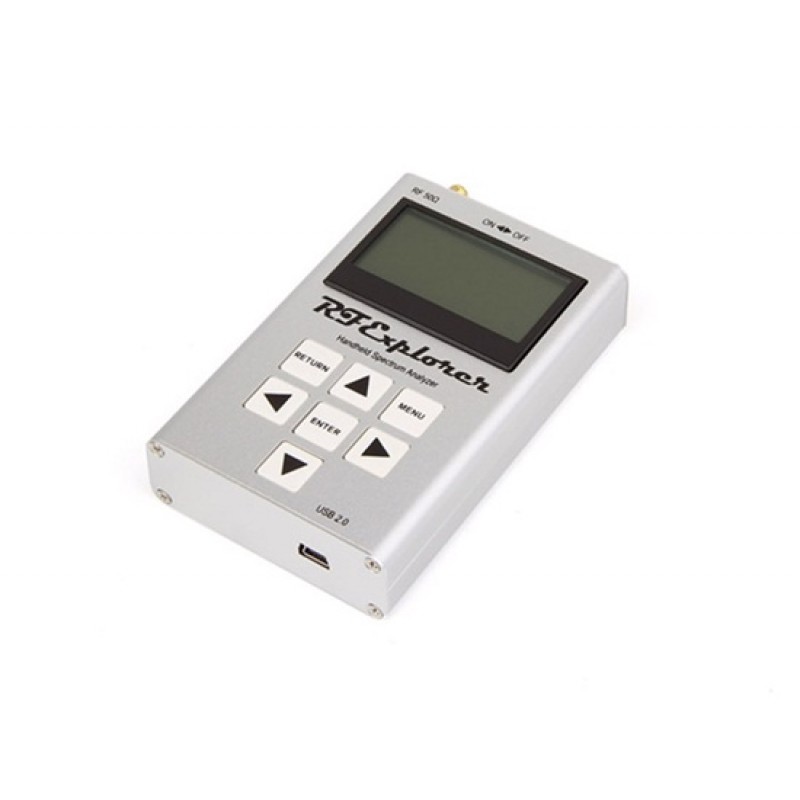

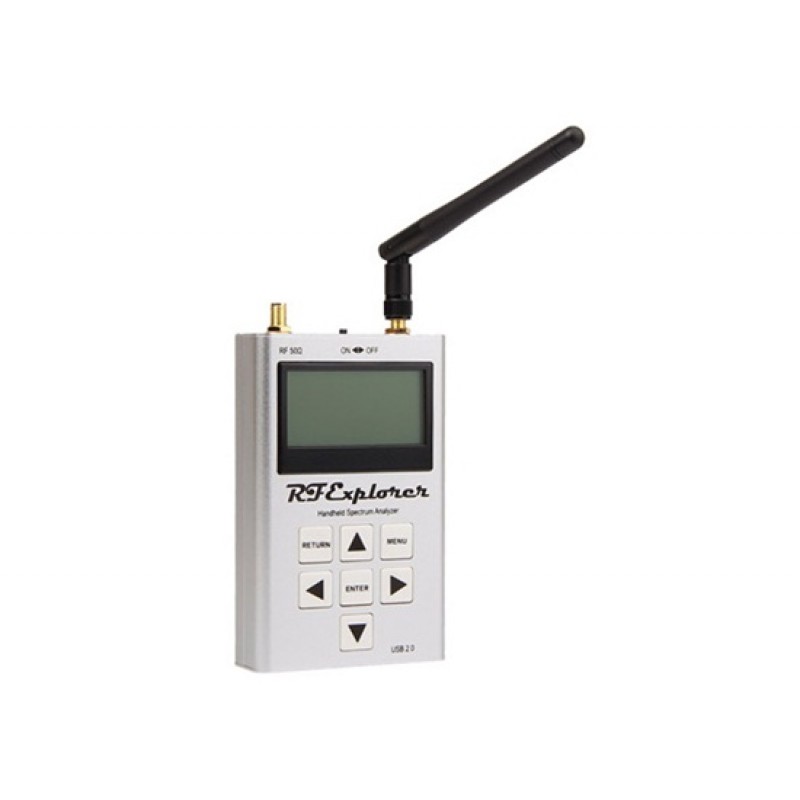

Handheld Digital Spectrum Analyzer RF Explorer WiFi Combo
- Ex Tax: $327.86
- Product Code: CX0304X
- Availability: In Stock
FeaturesPocket size and light weightSolid aluminum metal caseIncludes a transport EVA carry case for RF ExplorerSpectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modesLife..
$327.86
| Features | |
| Pocket size and light weight Solid aluminum metal case Includes a transport EVA carry case for RF Explorer Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes Lifetime free firmware upgrades available, open to community requested features High capacity Lipo for 1hs+ of continuous run, rechargeable by USB Windows PC client Open Source Wide band coverage to all popular RF ISM frequencies, starting at 2350MHz and going up to 2550MHz, as well as 4850-100MHz. Graphics LCD 128x4 pixels, great visibility outdoors PC Windows client supports Windows XP/Vista/Win7 both 32 and 4bits Backlight for great indoor visibility | |
| General Specs | |
| Frequency band | 2350-2550 MHz and 4850-100 MHz |
| Frequency span | 2-00Mhz |

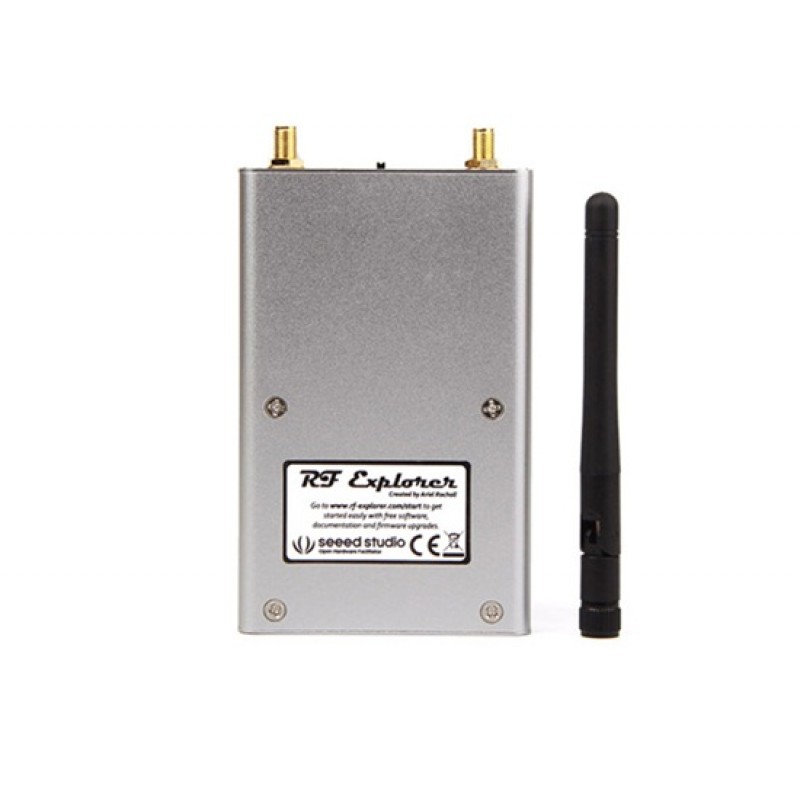

| 2 standard SMA 50 ohms Spectrum Analyzer connectors | Left SMA port (G): 4850-100MHz Right SMA port (2.4G): 2350-2550 MHz |
| Amplitude resolution | 0.5dBm |
| Dynamic range | -105dBm to -15dBm |
| Absolute Max input power | Left SMA port (G): +25dBm Right SMA port (2.4G): +5dBm |
| Average noise level (typical) | -105dBm |
| RF Generator amplitude | -30dBm to +1dBm (Right SMA port only) |
| RF Generator frequency | 2350-2550MHz (Right SMA port only) |
| Frequency stability and accuracy (typical) | Left SMA port (G): +-0.5ppm Right SMA port (2.4G): +-10ppm |
| Amplitude stability and accuracy (typical) | +-3dBm |
| Frequency resolution | 1Khz |
| Resolution bandwidth (RBW) | automatic 58Khz to 812Khz |
| Size | 113 x 70 x 25 mm |
Package Details
Weight: g Size: cm
