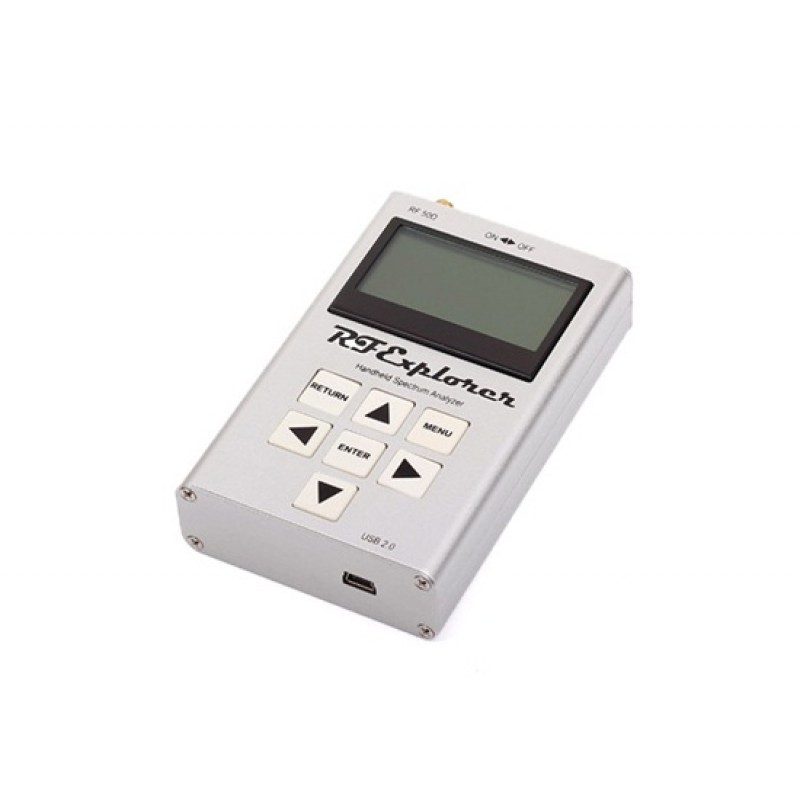

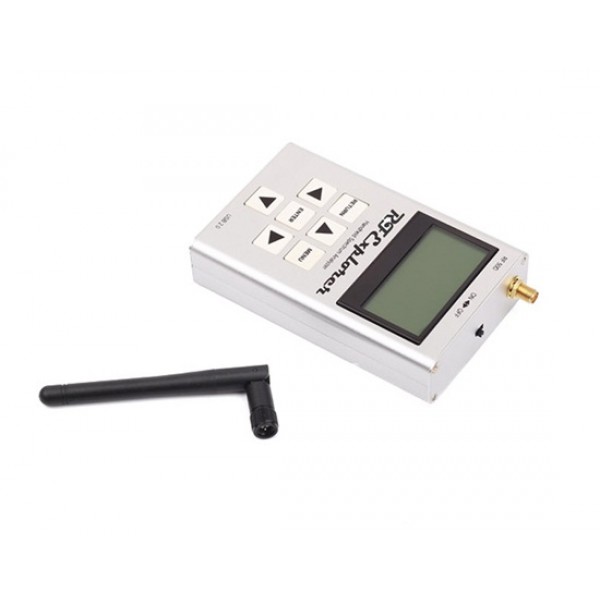

Handheld Digital Spectrum Analyzer RF Explorer 6G Model
- Ex Tax: $269.11
- Product Code: CX0303X
- Availability: In Stock
FeaturesPocket size and light weightSolid aluminum metal caseSpectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modesLifetime free firmware upgrades available, open to comm..
$269.11
| Features | |
| Pocket size and light weight Solid aluminum metal case Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes Lifetime free firmware upgrades available, open to community requested features High capacity Lipo for 1hs+ of continuous run, rechargeable by USB Windows PC client Open Source Wide band coverage to all popular RF frequencies in the GHz range, starting at 4850MHz and up to 100MHz. Graphics LCD 128x4 pixels, great visibility outdoors PC Windows client supports Windows XP/Vista/Win7 both 32 and 4bits Backlight for great indoor visibility | |
| General Specs | |
| Frequency band | 4850-100MHz |
| Frequency span | 112KHz - 300MHz (can extend to 00MHz with any expansion module connected) |
| One standard SMA 50 ohms Spectrum Analyzer connector | 4850-100MHz |
| Amplitude resolution | 0.5dBm |
| Dynamic range | -105dBm to -15dBm |
| Absolute Max input power | +25dBm |
| Average noise level (typical) | -105dBm |
| Frequency stability and accuracy (typical) | +-0.5ppm |
| Amplitude stability and accuracy (typical) | +-3dBm |
| Frequency resolution | 1Khz |
| Resolution bandwidth (RBW) | automatic 58Khz to 812Khz |
| Size | 113 x 70 x 25 mm |
Package Details
Weight: g Size: cm
