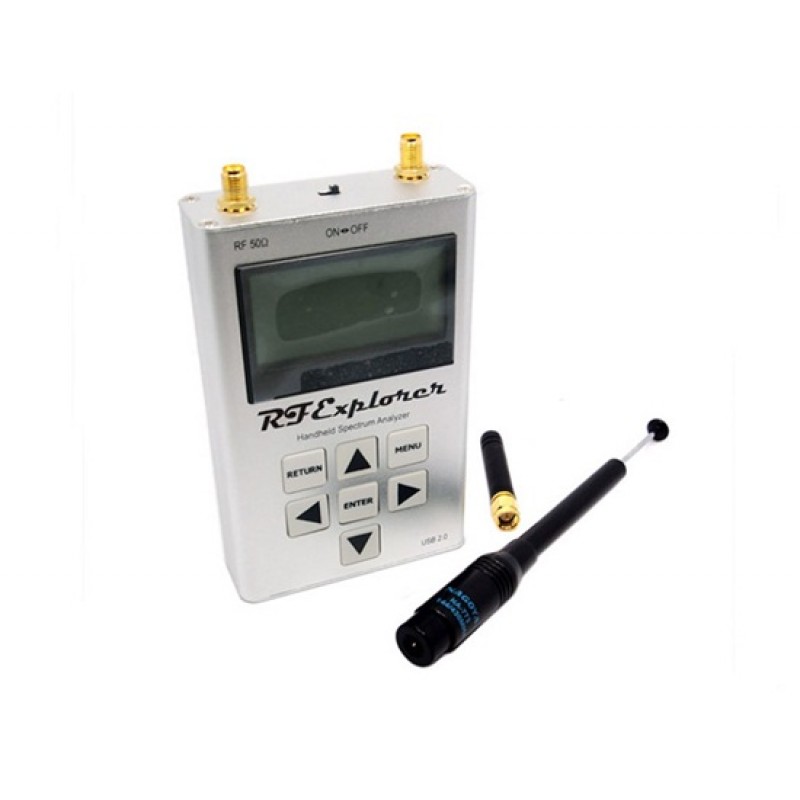

Handheld Digital Spectrum Analyzer RF Explorer 6G Combo
- Ex Tax: $434.86
- Product Code: CX0302X
- Availability: In Stock
FeaturesPocket size and light weightSolid aluminum metal caseIncludes a transport EVA carry case for RF ExplorerSpectrum analyzer mode with peak max and hold, normal, overwrite and averaging modesLife..
$434.86
| Features | |

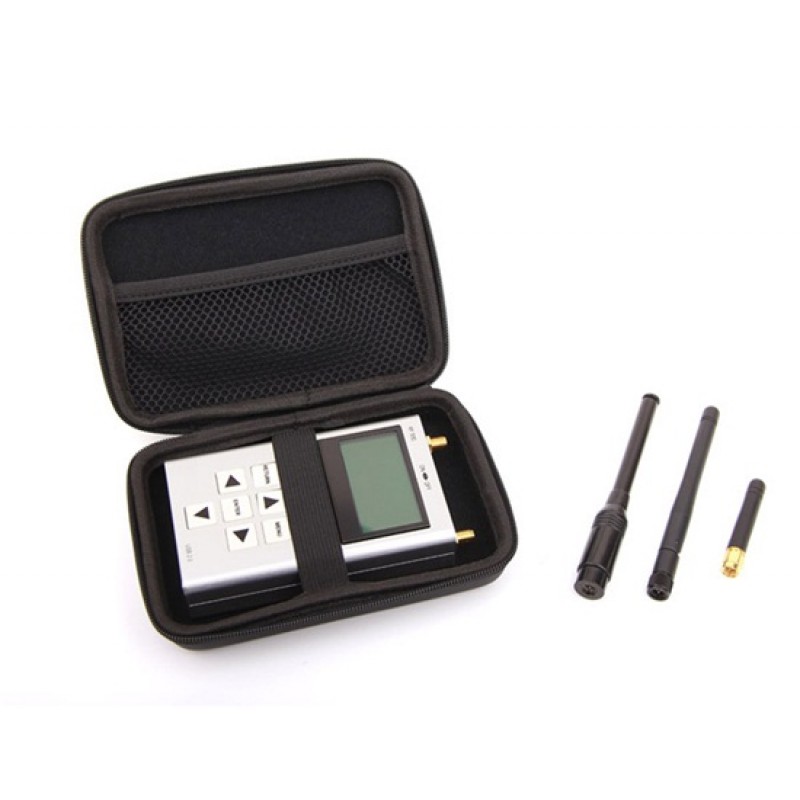

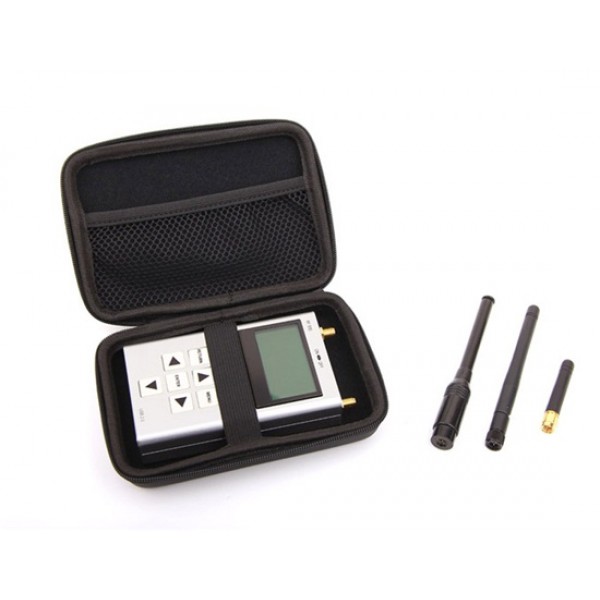

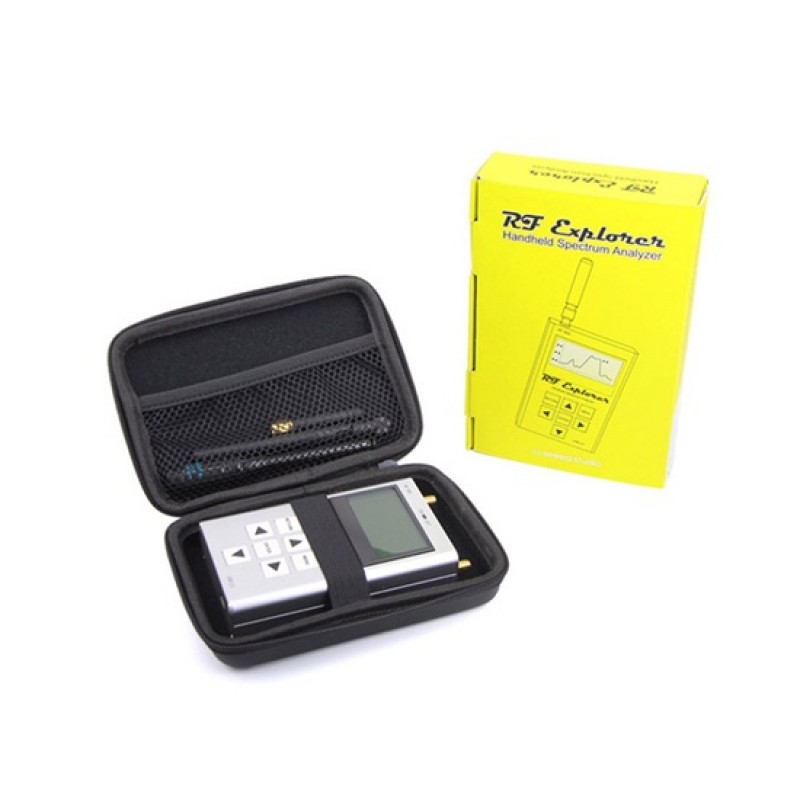

| Pocket size and light weight Solid aluminum metal case Includes a transport EVA carry case for RF Explorer Spectrum analyzer mode with peak max and hold, normal, overwrite and averaging modes Lifetime free firmware upgrades available, open to community requested features High capacity Lipo for 1hs+ of continuous run, rechargeable by USB Windows PC client Open Source Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-.1GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc. Graphics LCD 128x4 pixels, great visibility outdoors PC Windows client supports Windows XP/Vista/Win7 both 32 and 4bits Backlight for great indoor visibility | |
| General Specs | |
| Frequency band | 15-2700 MHz and 4850-100MHz |
| Frequency span | Left SMA port (G): 2-00Mhz Right SMA port (WSUB3G): 112KHz - 00MHz |
| 2 standard SMA 50 ohms Spectrum Analyzer connectors | Left SMA port (G): 4850-100MHz Right SMA port (WSUB3G): 15-2700 MHz |
| Amplitude resolution | 0.5dBm |
| Dynamic range | Left SMA port (G): -105dBm to -15dBm Right SMA port (WSUB3G): -110dBm to -10dBm |
| Absolute Max input power | Left SMA port (G): +25dBm Right SMA port (WSUB3G): +30dBm |
| Average noise level (typical) | -105dBm |
| Frequency stability and accuracy (typical) | Left SMA port (G): +-0.5ppm Right SMA port (WSUB3G): +-10ppm |
| Amplitude stability and accuracy (typical) | Left SMA port (G): +-3dBm Right SMA port (WSUB3G): +-dBm |
| Frequency resolution | 1Khz |
| Resolution bandwidth (RBW) | Left SMA port (G): automatic 58Khz to 812Khz Right SMA port (WSUB3G): automatic 3Khz to 00Khz |
| Size | 113x70x25 mm |
Package Details
Weight: g Size: cm
