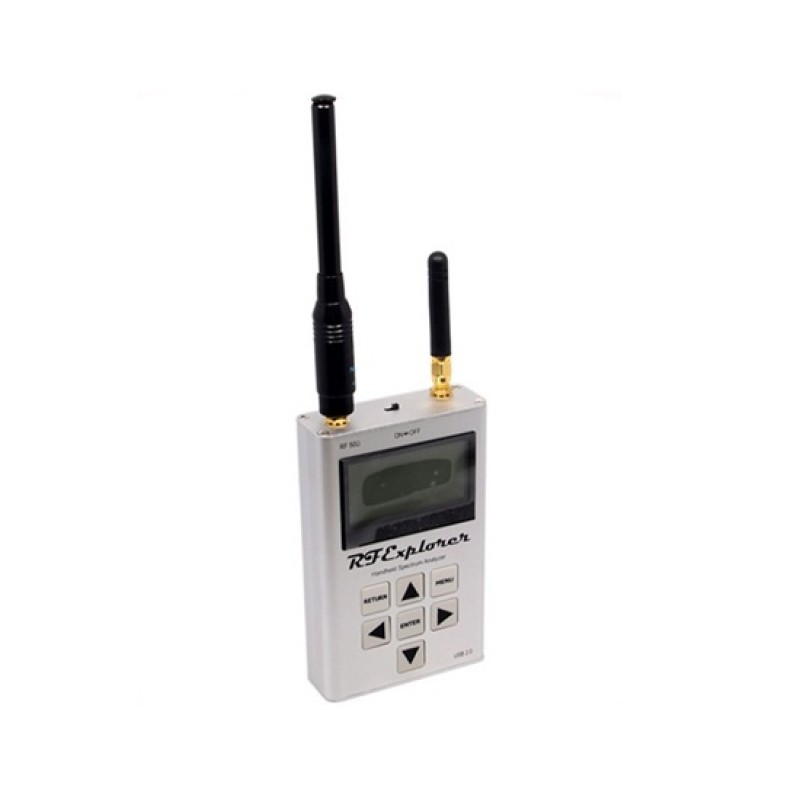

Handheld Digital Spectrum Analyzer RF Explorer -3G Combo
- Ex Tax: $316.11
- Product Code: CX0312X
- Availability: In Stock
FeaturesPocket size and light weightSolid aluminum metal caseIncludes a transport EVA carry case for RF ExplorerSpectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modesLife..
$316.11
| Features | |

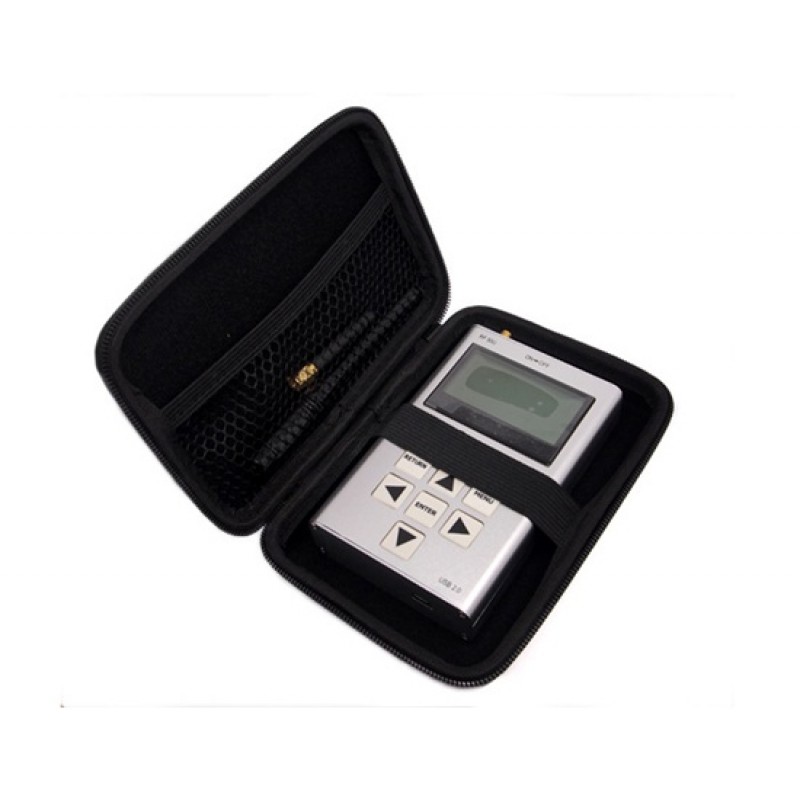

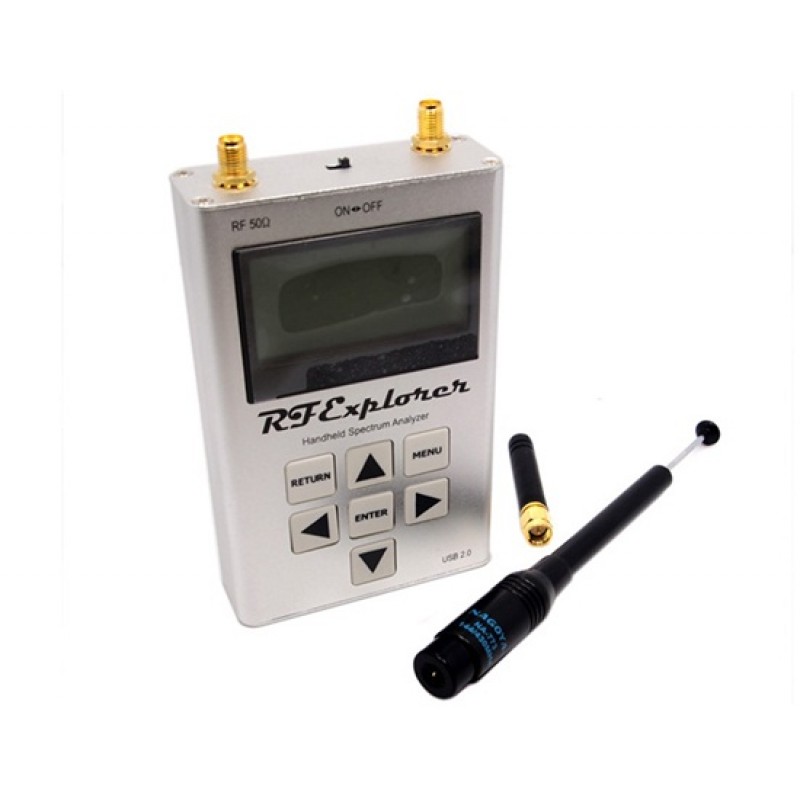

| Pocket size and light weight Solid aluminum metal case Includes a transport EVA carry case for RF Explorer Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes Lifetime free firmware upgrades available, open to community requested features High capacity Lipo for 1hs+ of continuous run, rechargeable by USB Windows PC client Open Source Can be extended with internal Expansion Modules for additional band and functionality Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc. Firmware: RF Explorer 3G Combo is delivered with upgraded firmware v1.09. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions. Graphics LCD 128x4 pixels, great visibility outdoors PC Windows client supports Windows XP/Vista/Win7 both 32 and 4bits Backlight for great indoor visibility 2 standard SMA 50 ohms connector, one for Sub-GHz wideband Nagoya NA-773 telescopic antenna included and another 2.4Ghzone for 15-2700 MHz band with helical antenna included. | |
| General Specs | |
| Frequency band | 15-2700 MHz |
| Frequency span | 112KHz - 00MHz |
| Amplitude resolution | 0.5dBm |
| Dynamic range | Left SMA port (WSUB1G): -115dBm to 0dBm Right SMA port (WSUB3G): -110dBm to -10dBm |
| Absolute Max input power | Left SMA port (WSUB1G): +5dBm Right SMA port (WSUB3G): +30dBm |
| Average noise level (typical) | -110dBm |
| Frequency stability and accuracy (typical) | +-10ppm |
| Amplitude stability and accuracy (typical) | +-dBm |
| Frequency resolution | 1Khz |
| Resolution bandwidth (RBW) | automatic 3Khz to 00Khz |
| Weight | 185g |
| Size | 113 x 70 x 25 mm |
Package Details
Weight: g Size: cm
