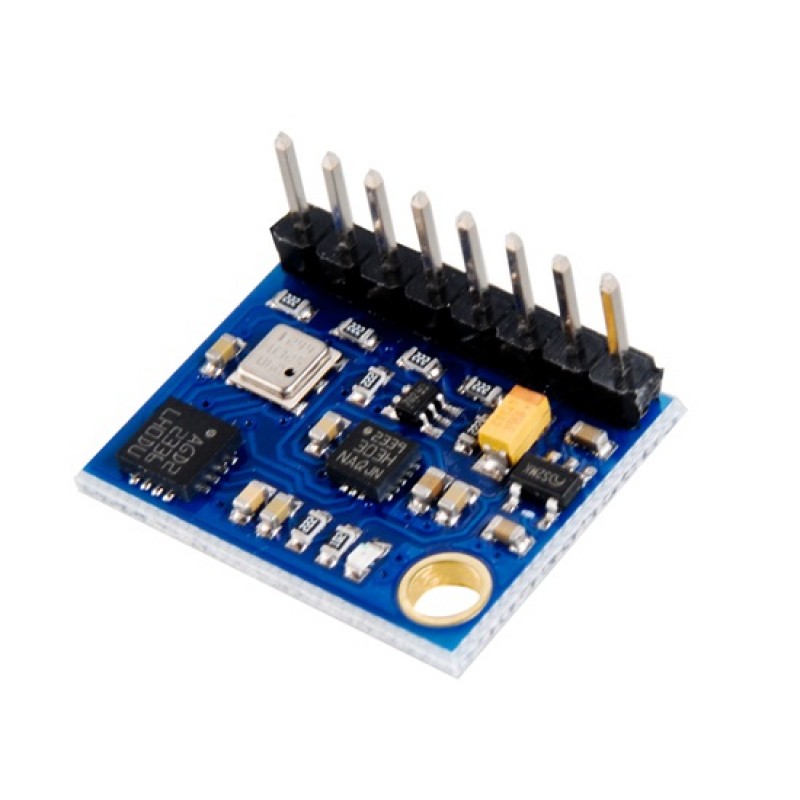

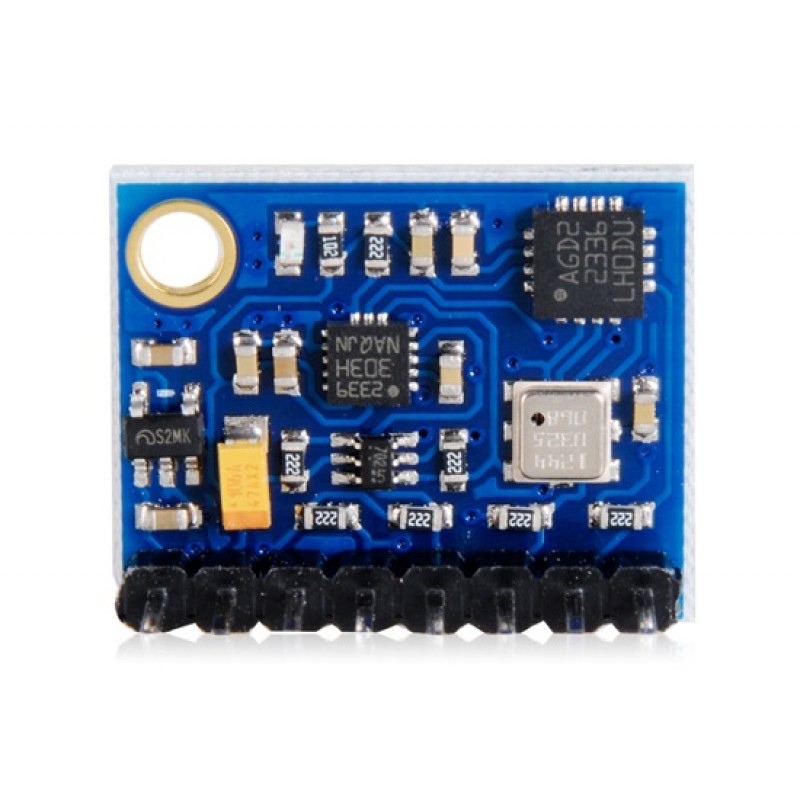

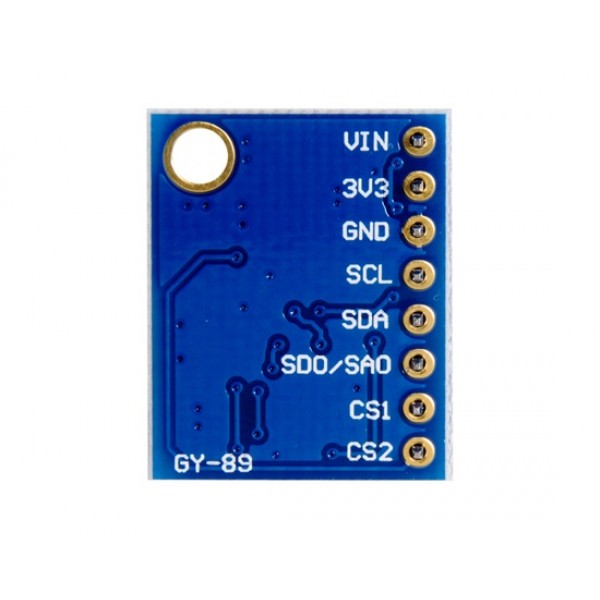

GY-89 10DOF Gyro/ Accelerometer/Compass/ Altimeter Sensor Module
- Ex Tax: $16.24
- Product Code: CX0337X
- Availability: In Stock
FeaturesChip: LSM303+L3GD20+BMP180Output format (I2C/SPI): Gyro: one 1-bit reading per axis; Accelerometer: one 1-bit reading per axis; Magnetometer: one 1-bit reading per axis; Barometer: 24-bit pres..
$16.24
| Features | |
| Chip: LSM303+L3GD20+BMP180 Output format (I2C/SPI): Gyro: one 1-bit reading per axis; Accelerometer: one 1-bit reading per axis; Magnetometer: one 1-bit reading per axis; Barometer: 24-bit pressure reading (I2C only) Sensitivity range: Gyro: 245, 500, or 2000/s; Accelerometer: 2, 4, , 8, or 1 g; Magnetometer: 2, 4, 8, or 12 gauss; Barometer: 300hPato 1110hPa | |
| General Specs | |
| Model | GY-89 |
| Chip | LSM303+L3GD20+BMP180 |
| Power supply | 3-5v |
| Supply current | 8mA |
| Operating voltage | 2.5 V to 5.5 V |
| Weight without header pins | 1 g |
| Dimensions | 22 x 17 mm |
Package Details
Weight: g Size: cm
