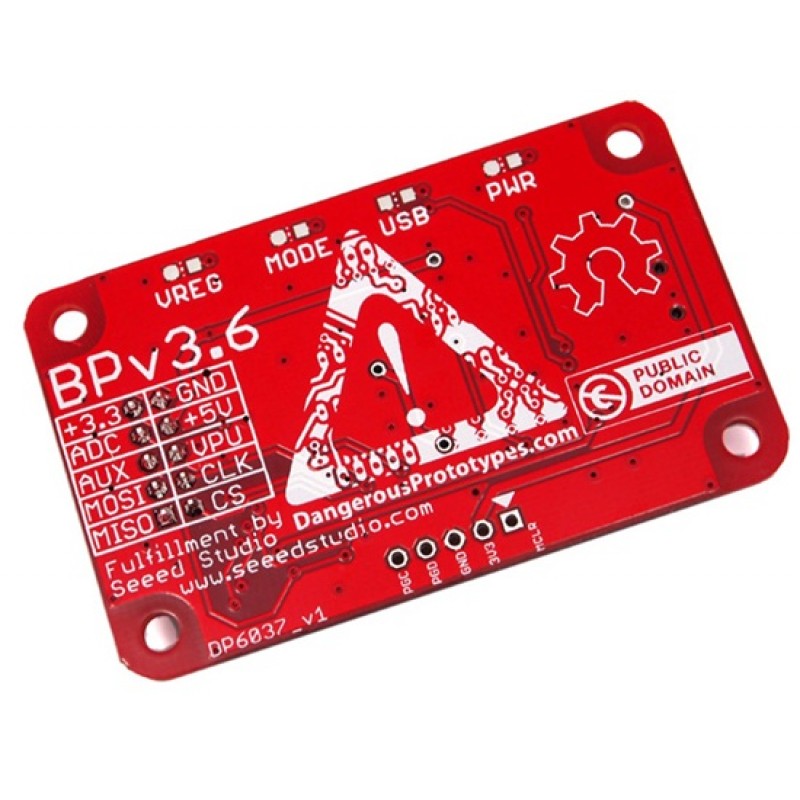

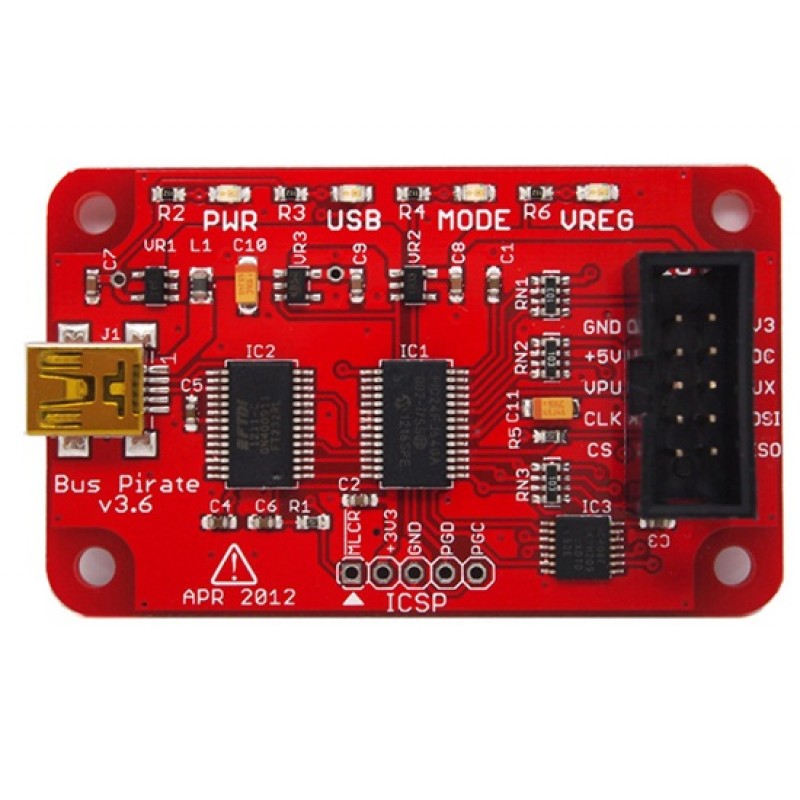

Bus Pirate v3.6 Universal Bus Interface (Red)
- Ex Tax: $42.24
- Product Code: CX0294R
- Availability: In Stock
FeaturesUSB interface, USB powered1Hz-40MHz frequency measurement1kHz-4MHz pulse-width modulator, frequency generatorOn-board multi-voltage pull-up resistorsOn-board 3.3volt and 5volt power supplies w..
$42.24
| Features | |
| USB interface, USB powered 1Hz-40MHz frequency measurement 1kHz-4MHz pulse-width modulator, frequency generator On-board multi-voltage pull-up resistors On-board 3.3volt and 5volt power supplies with software reset Macros for common operations Bus traffic sniffers (SPI, I2C) Transparent USB to serial bridge mode 10Hz-1MHz low-speed logic analyzer Custom support in AVRDUDE, flashrom, openOCD AVR STK500 v2 programmer clone Scriptable from Perl, Python, etc. A bootloader for easy USB firmware updates Uses DP037 standard PCB layout Open source (CC 0/Public Domain) | |
| General Specs | |
| Tolerant pins | 5volt |
| Measurement probe | 0-volt |
Package Details
Weight: g Size: cm
