| Features | |

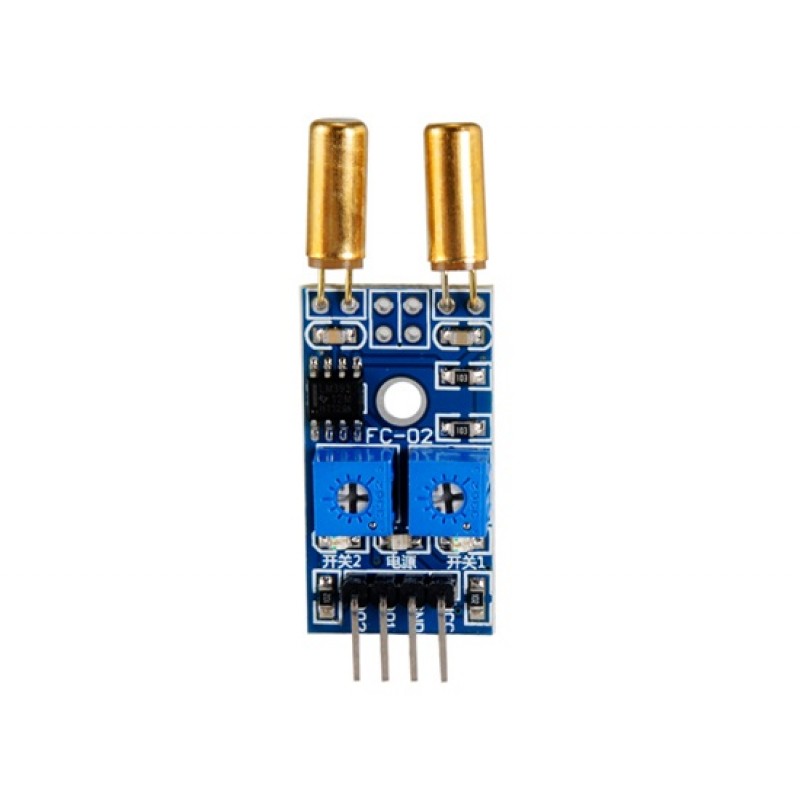

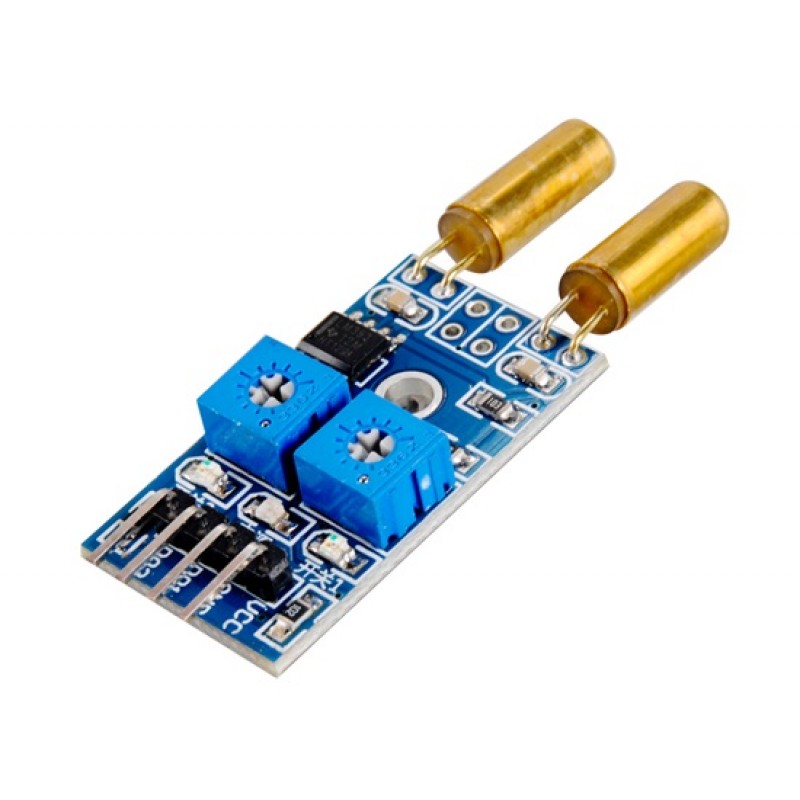

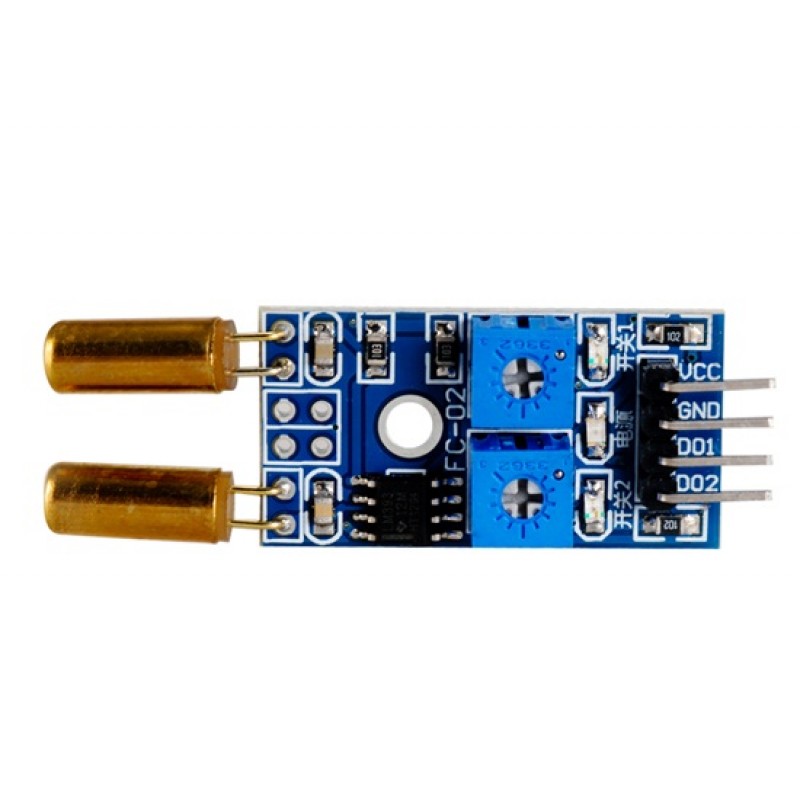

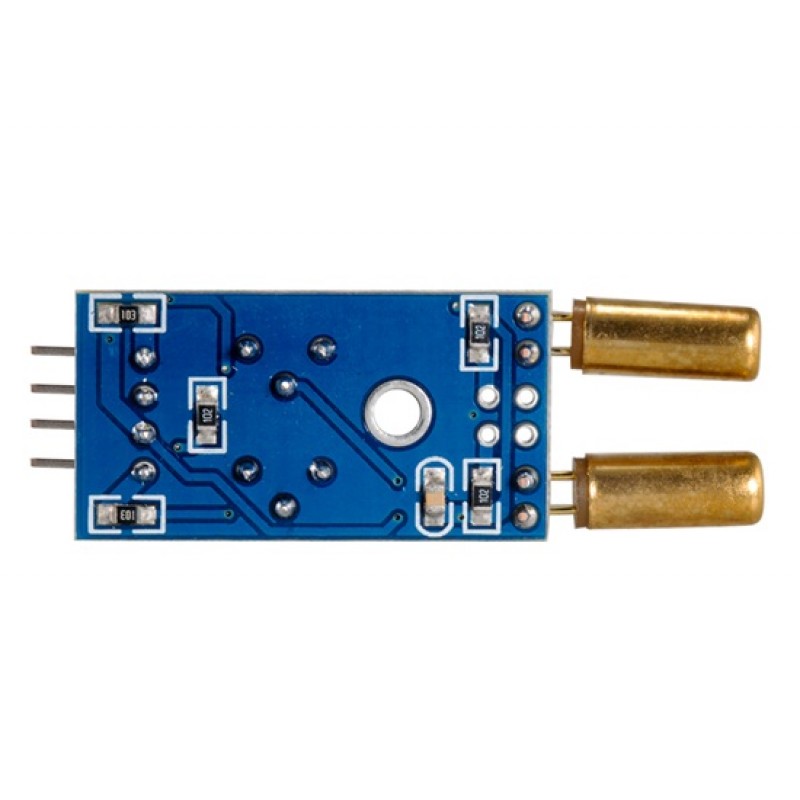

| High-sensitivity angle sensor SW-520D Comparator output, clean signal, great waveform, strong driving ability, more than 15mA Distribution positioner sensitivity adjustment With fixed bolt hole for easy installation Wide voltage LM393 comparator Green light on, the output low, green light off, the output high Generally the initial state is open, so that the inclination sensor is not in a working state, to prolong life Default SW-520D sensor for object 90 degrees dumping detection The output can be directly connected with the single-chip microcontroller to detect high and low, then to detect the environmental changed view The output can directly drive relay module, to compose a high-power control angle switch Applies to various angle sensors, dumping sensors, tilt sensors, 2-channel output control | |
| General Specs | |
| Material | PCB |
| Working voltage: | 3.3V~12V |
| Output form | Digital switching output (0 and 1) |
| Dimensions | 3.2 x 1.7 x 0.5 cm |
| Weight | 5 g |
Package Details
Weight: g Size: cm
