| Features | |

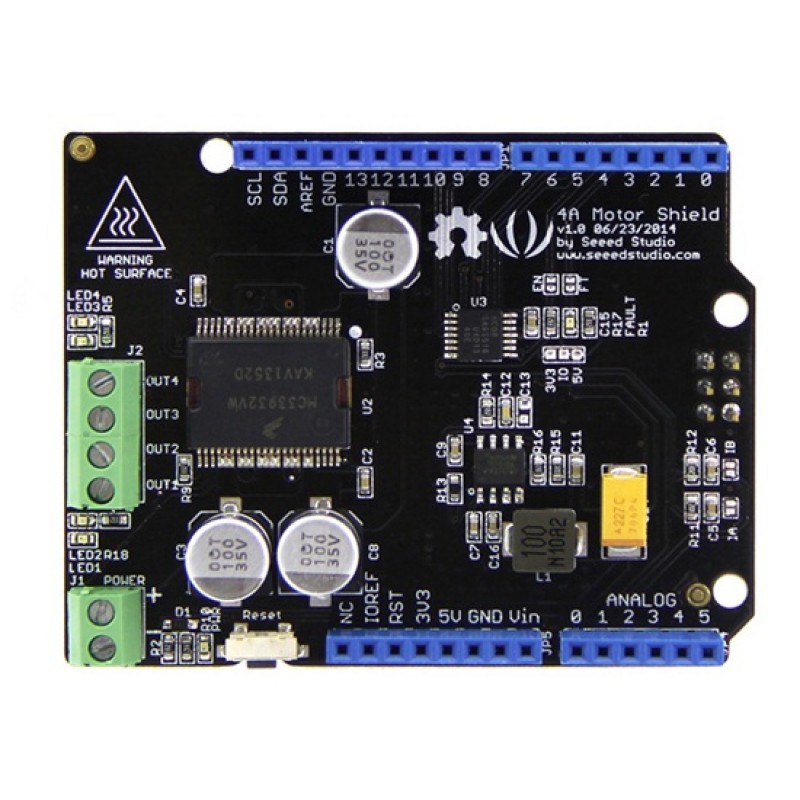

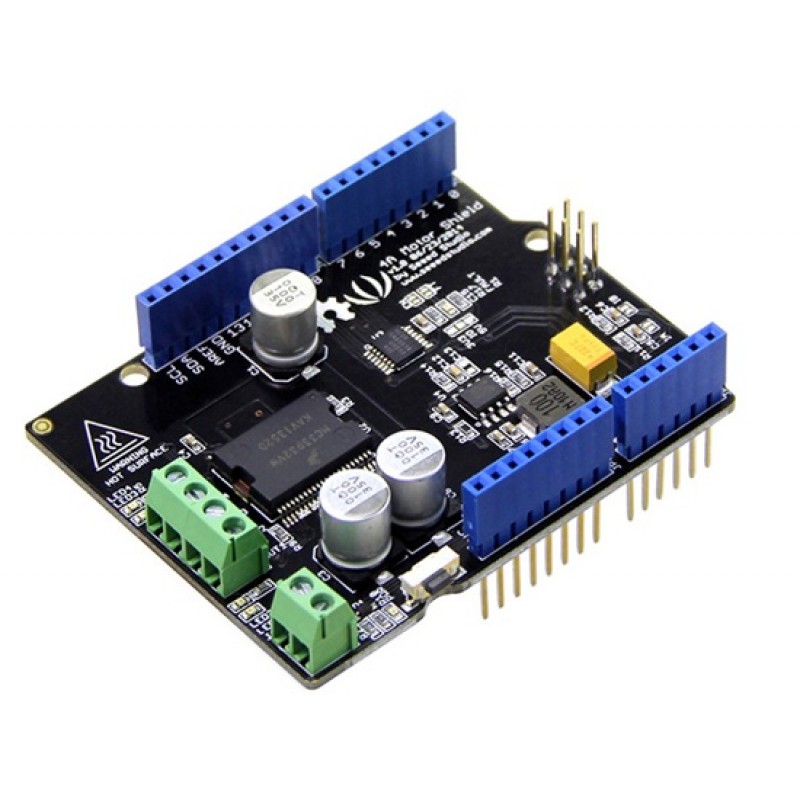

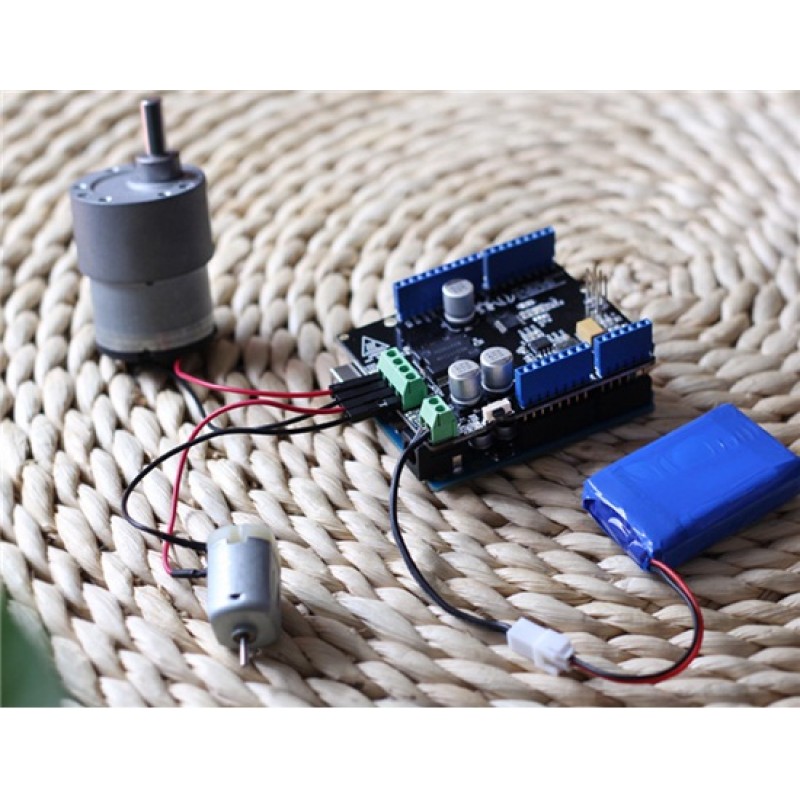

| Based on the Freescale MC33932 dual H-Bridge Power IC Lets you drive two DC motors with your Arduino/Seeeduino board, controlling the speed and direction of each one independently Output short-circuit protection (short to VPWR or GND) Over-current limiting (regulation) via internal constant-off-time PWM Temperature dependant current limit threshold reduction | |
| General Specs | |
| Operating Voltage | V ~ 28V |
| DC/DC output | 5V 100mA @ "5V" pin |
| Output Current(For Each Channel ) | 2A (continuous operation) / 5A(peak) |
| Output Duty Range | 0~100 |
Package Details
Weight: g Size: cm
