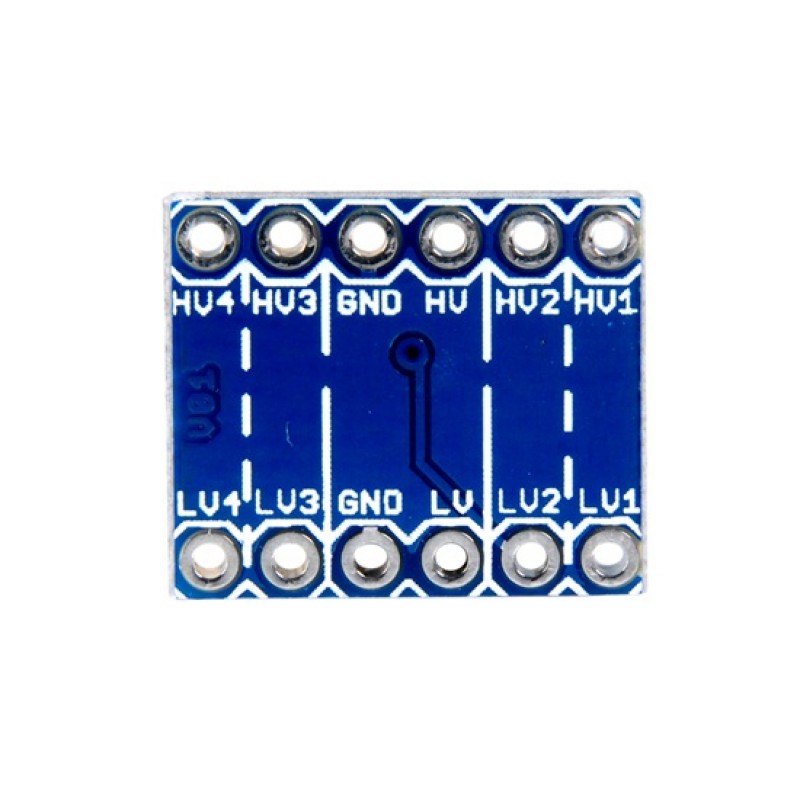

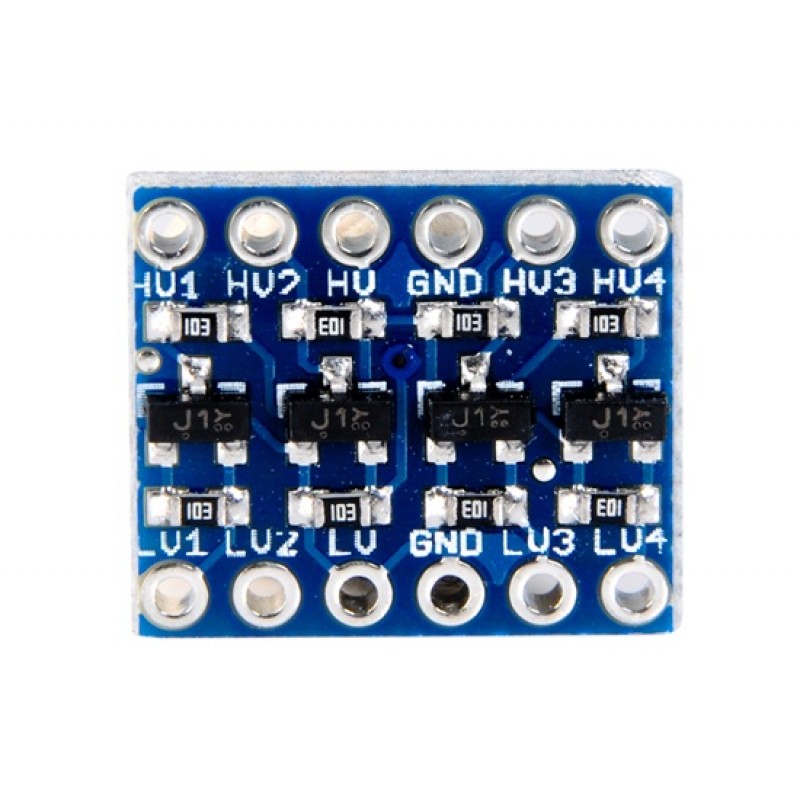

4-Channel 3.3V / 5V Logic Level Converter Module
- Ex Tax: $2.86
- Product Code: CX0357X
- Availability: In Stock
FeaturesCan safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same timeAlso works with 2.8V and 1.8V devicesAllows you to successfully set your high and low voltages and step up and ..
$2.86
| Features | |
| Can safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time Also works with 2.8V and 1.8V devices Allows you to successfully set your high and low voltages and step up and down between them safely on the same channel Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side Needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the "HV" pin, low voltage (3.3V for example) to "LV", and ground from the system to the "GND" pin Very easy to use | |
| General Specs | |
| Material | FR4 |
| Quantity | 1-piece |
| Dimension | 1.5 x 1.3 x 0.3 cm |
| Size | 5 g |
Package Details
Weight: g Size: cm
